REMOVAL PROCEDURE
1. Remove the instrument panel.

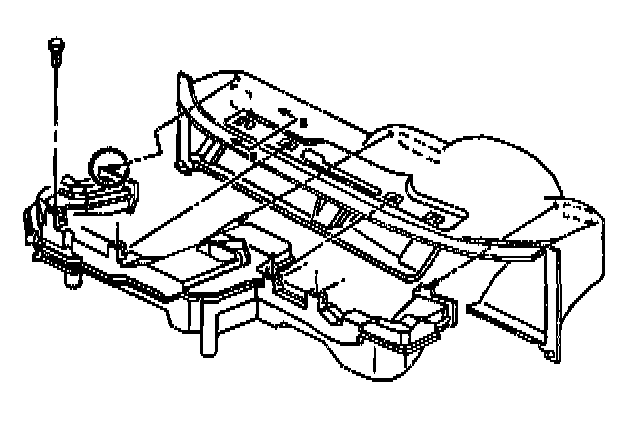

2. Remove the main air distribution duct bolts and the main air distribution duct.

INSTALLATION PROCEDURE
1. Install the main air distribution duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts.

Tighten
Tighten the bolts to 1.5 N.m (13 lb in).

3. Install the instrument panel.
