Auxiliary

REMOVAL PROCEDURE
1. Position the carpet aside.

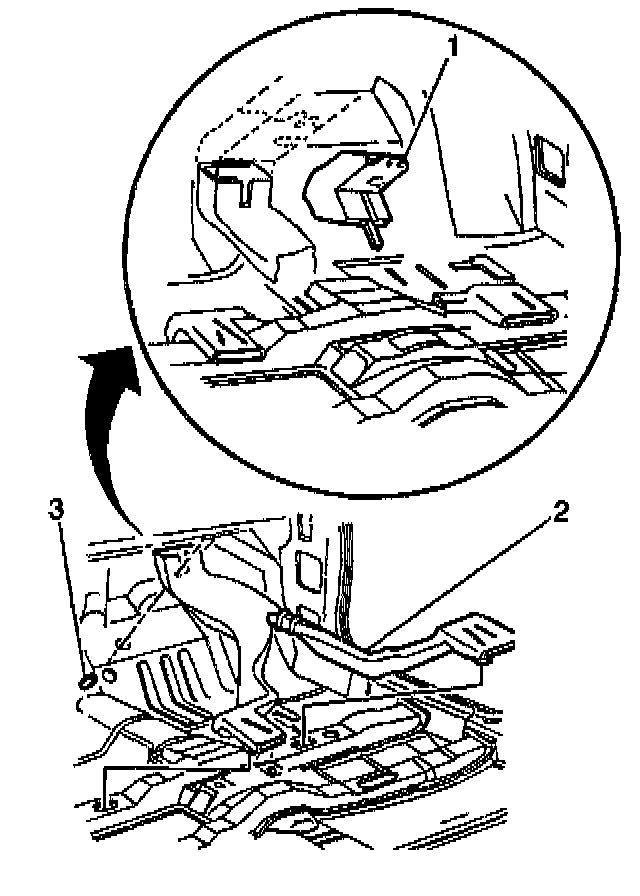

2. Remove the lower heater duct (1).
3. Unsnap the rear floor air outlet duct (2) from the studs and the holes in the floor reinforcement.

INSTALLATION PROCEDURE
1. Snap the rear floor air outlet duct (2) onto the studs and the holes in the floor reinforcement.
2. Install the lower heat duct (1).
3. Install the front carpet into position.
