PWR Transaxle Range SW, RCDLR, HDLP SW, R/COMP Lid Release SOL
PWR Transaxle Range SW, RCDLR, HDLP SW, R/COMP Lid Release SOL

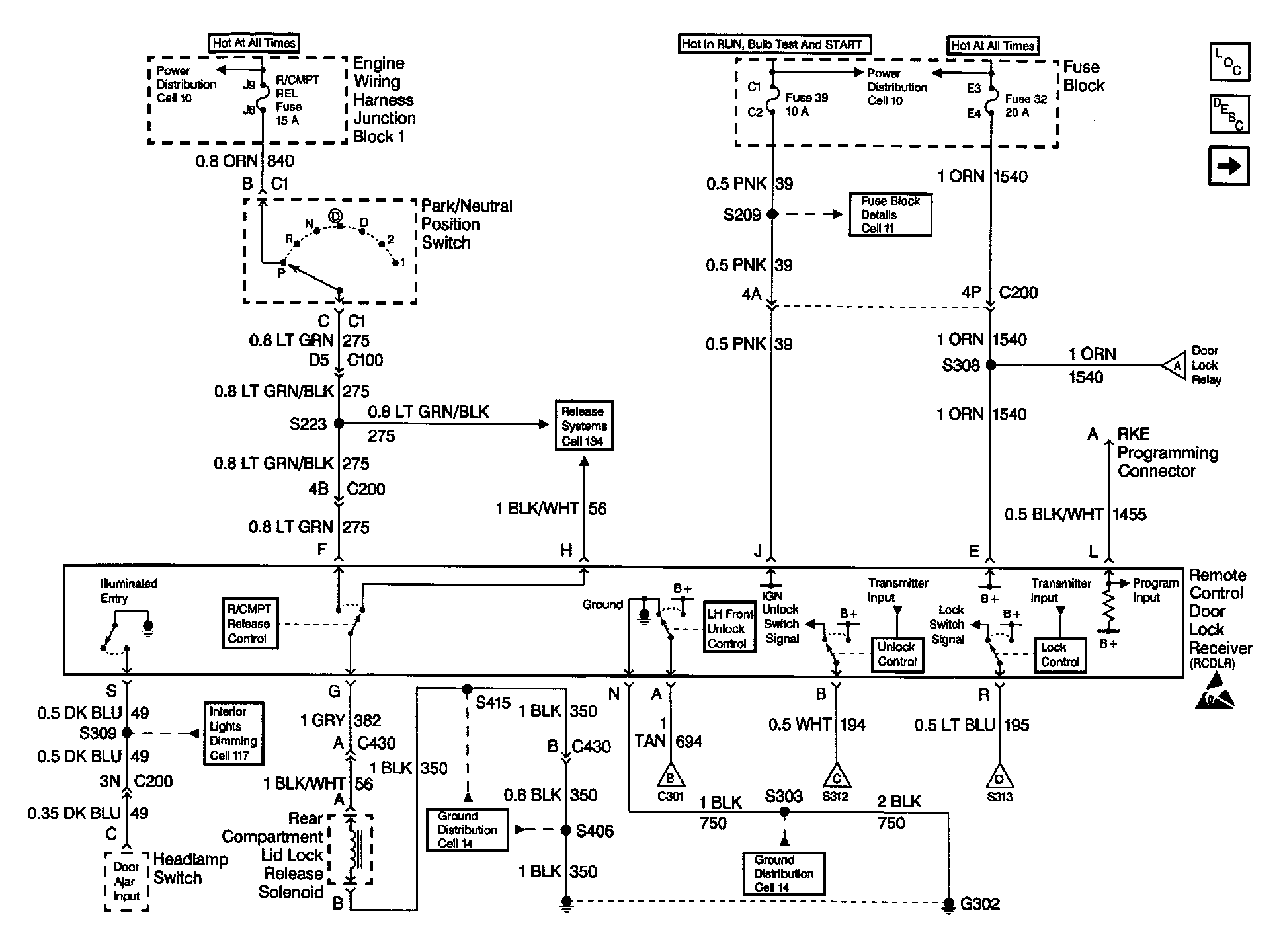

Keyless Entry Schematics: Power Transaxle Range Switch, RCDLR, Headlamp Switch, Rear Compartment Lid Release Solenoid:
