Home >> Chevrolet >> 1999 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio, C1

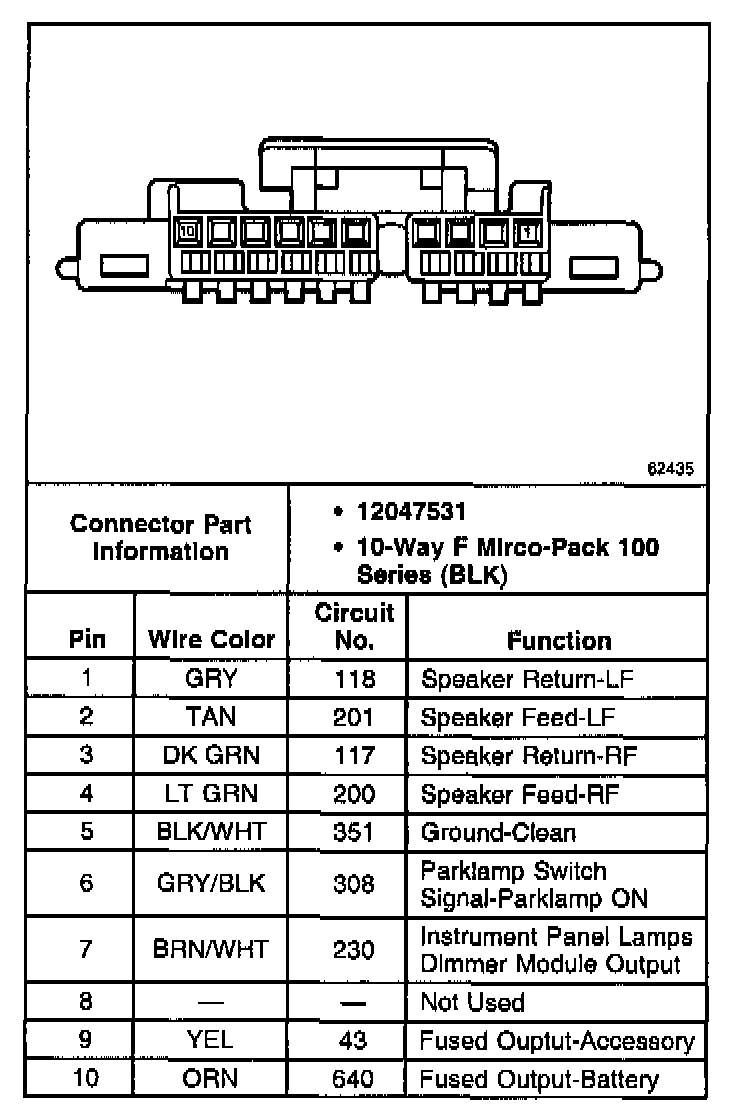

Radio, C1

Radio, C1:
