Home >> Chevrolet >> 1999 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Position Sensor/Switch, A/T >> Transaxle Range Switch, C1

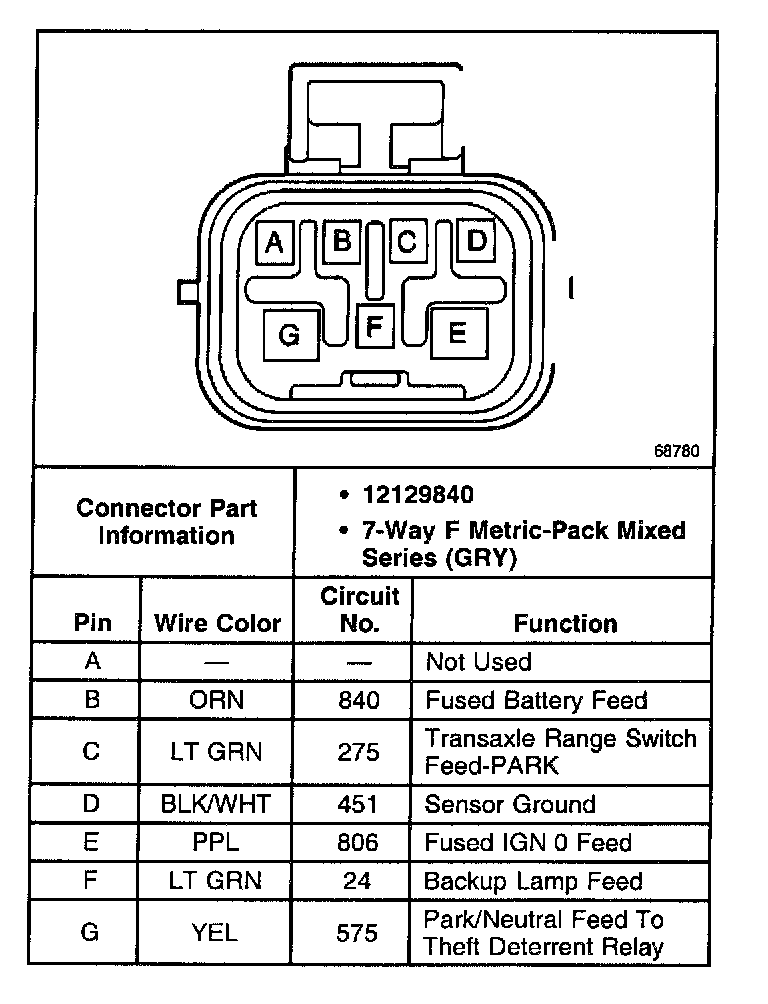

Transaxle Range Switch, C1

Transaxle Range Switch, C1:
