ABS Main Relay: Service and Repair

REMOVAL PROCEDURE





1. Remove the I/P sound insulator panel.

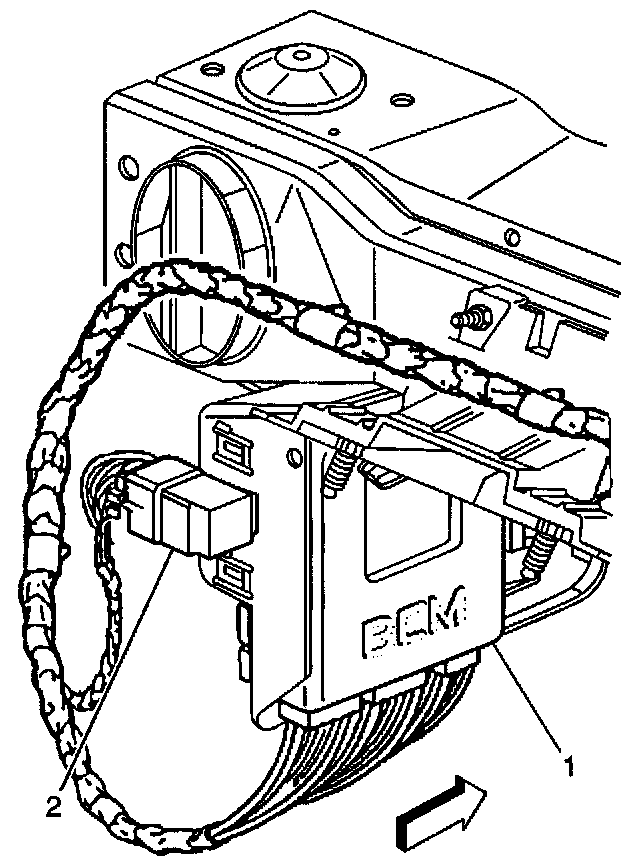

2. Release the electronic brake control relay (2) from the EBCM bracket (1).
3. Remove the electronic brake control relay connector.

INSTALLATION PROCEDURE





1. Install the electronic brake control relay connector.

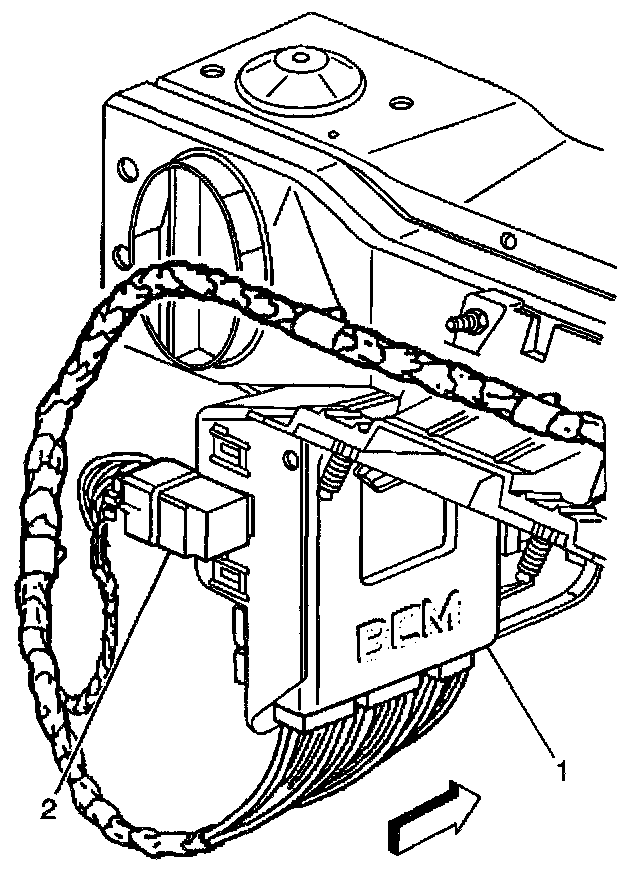

2. Slide the electronic brake control relay (2) into the EBCM bracket (1) until the electronic brake control relay is secure.
3. Install the I/P sound insulator panel.
