Sedan

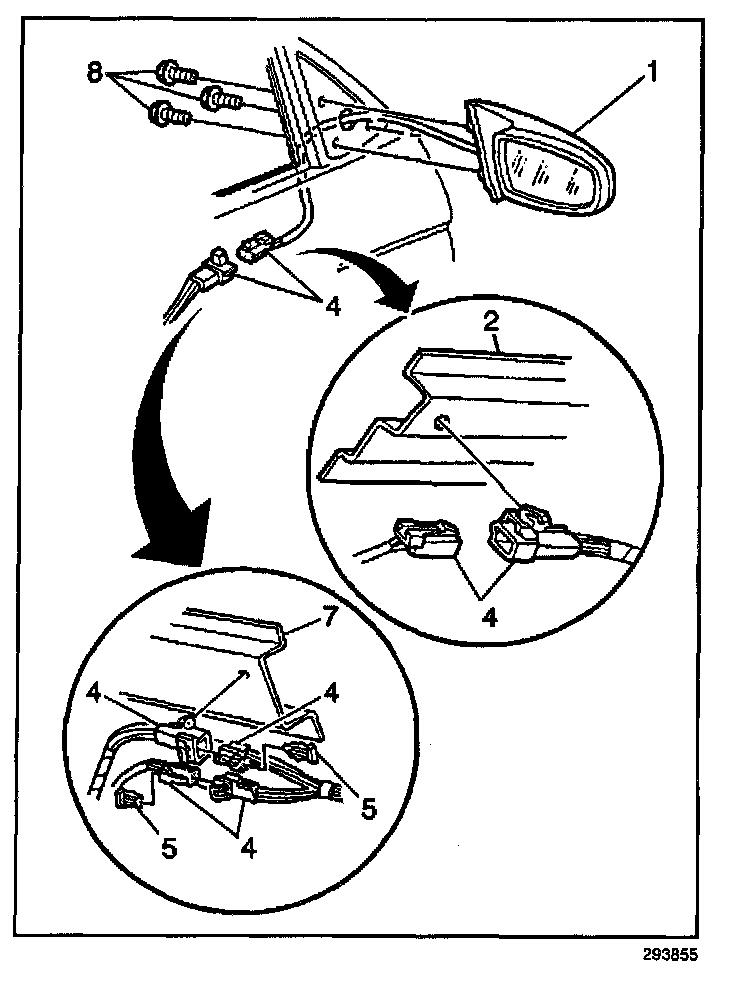

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Disconnect the electrical connectors (4).
3. Remove the mirror reinforcement cover.
4. Remove the electric mirror attaching bolts (8).
5. Remove the mirror (1) from the door.

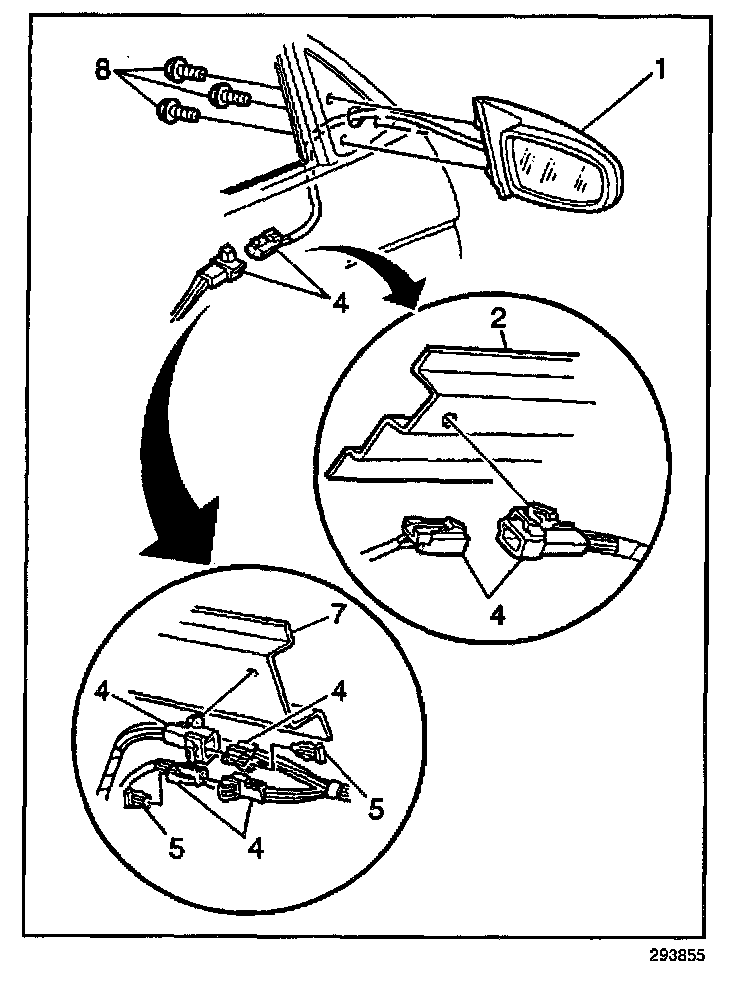

INSTALLATION PROCEDURE

IMPORTANT: Tuck the front edge of the mirror under the channel. Slide the mirror forward as far as possible so the mirror is flush with the belt molding.




1. Position the mirror (1) to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the electric mirror attaching bolts (8). Start at the lower left bolt. Tighten in a clockwise direction.

Tighten
Tighten the electric mirror attaching bolts to 10 N.m (89 lb in).

3. Install the mirror reinforcement cover.
4. Connect the electrical connectors (4).
5. Install the trim panel.
