Coupe

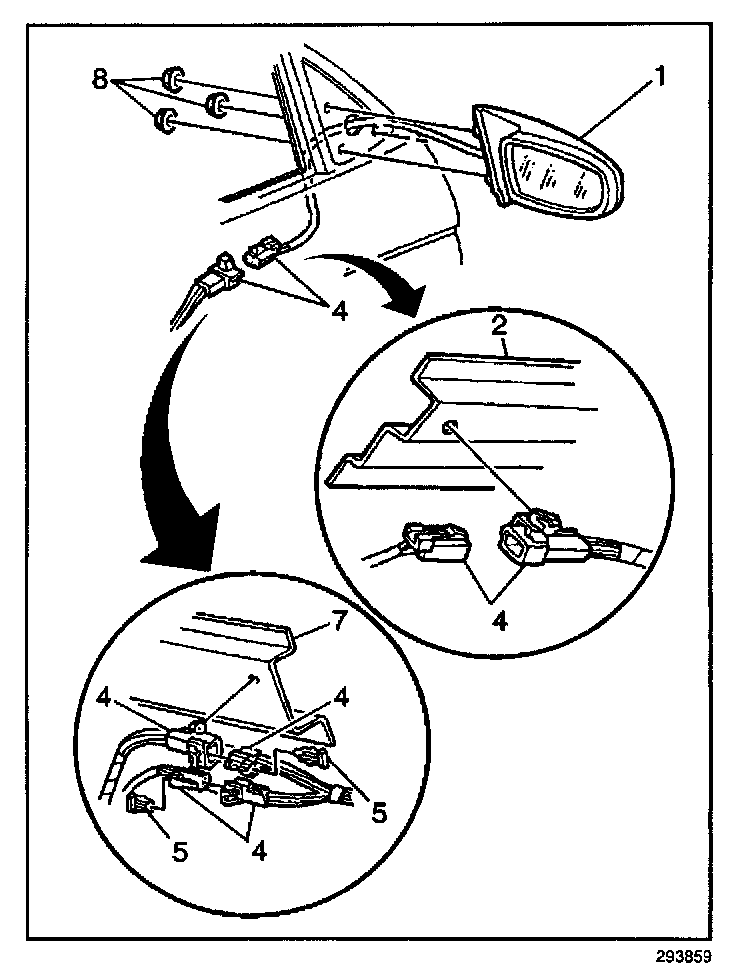

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Disconnect the electrical connectors (4).
3. Remove the mirror reinforcement cover.
4. Remove the electric mirror attaching nuts (8).
5. Remove the mirror (1) from the door.

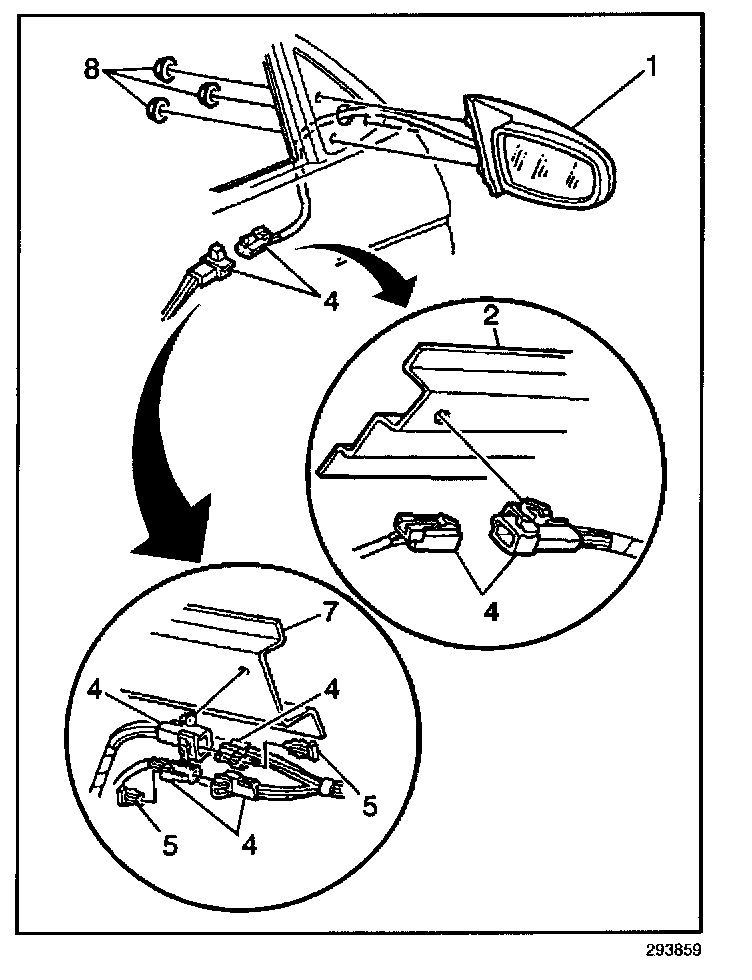

INSTALLATION PROCEDURE




1. Position the mirror (1) to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the electric mirror attaching nuts (8). Start at the lower left nut. Tighten in a clockwise direction.

Tighten
Tighten the electric mirror attaching nuts to 10 N.m (89 lb in).

3. Install the mirror reinforcement cover.
4. Connect the electrical connectors (4).
5. Install the trim panel.
