C1237

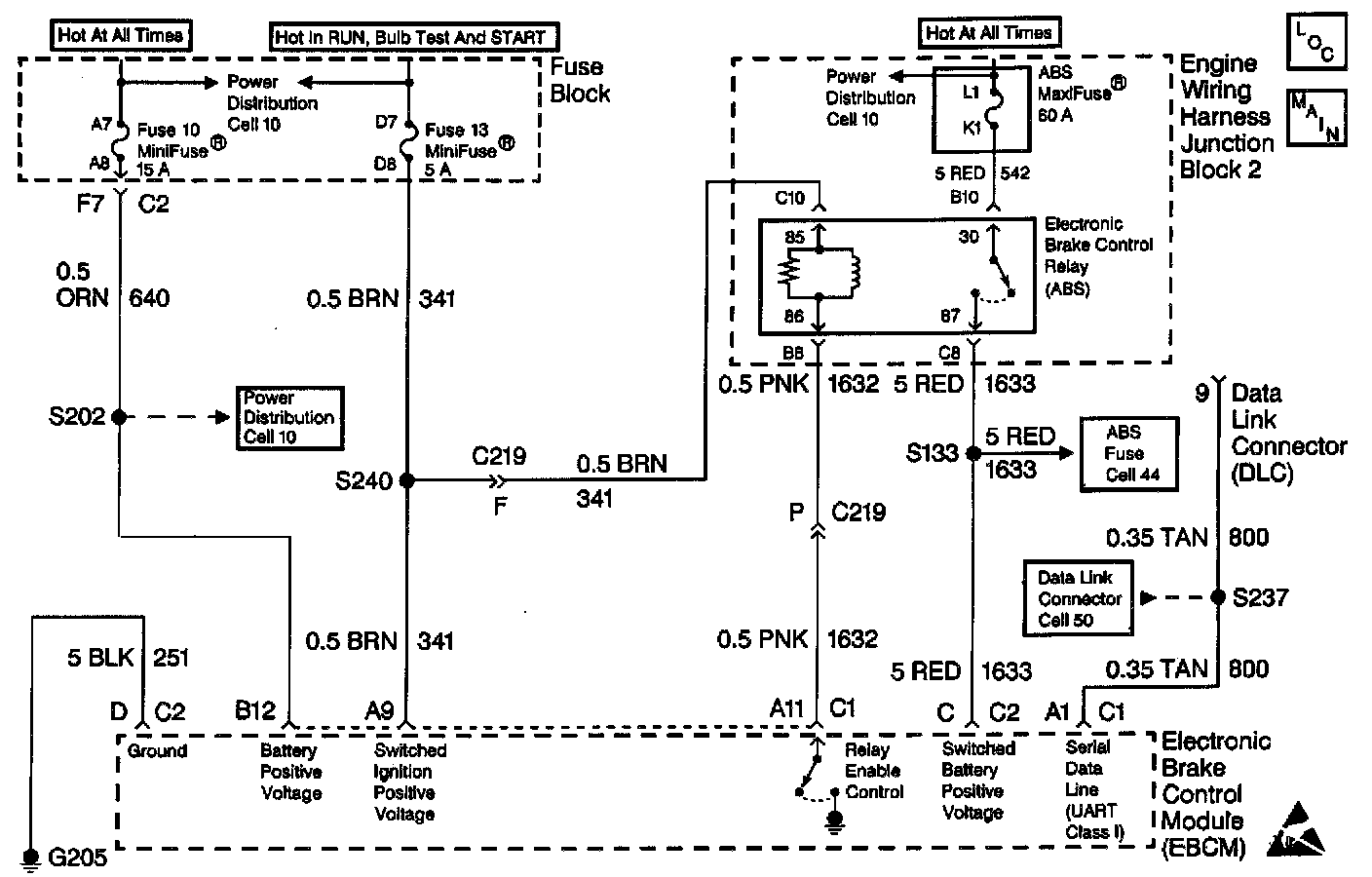

CIRCUIT DESCRIPTION
DTC C1237 detects high vehicle voltage levels prior to any required motor movement (initialization or ABS). If excessive voltage exists, demagnetization of the motor magnets may occur. Demagnetization of the motor magnets would eventually affect or eliminate ABS performance.

CONDITIONS FOR SETTING THE DTC
DTC C1237 can set only if the vehicle's speed is greater than 5 km/h (3 mph).
A malfunction exists if the switched battery voltage is greater than 17.1 volts.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction DTC stores.
^ The ABS disables.
^ The amber ABS warning indicators turn on.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
^ 100 drive cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
The following conditions may cause an intermittent malfunction:
^ A poor connection
^ Rubbed-through wire insulation
^ A broken wire inside the insulation

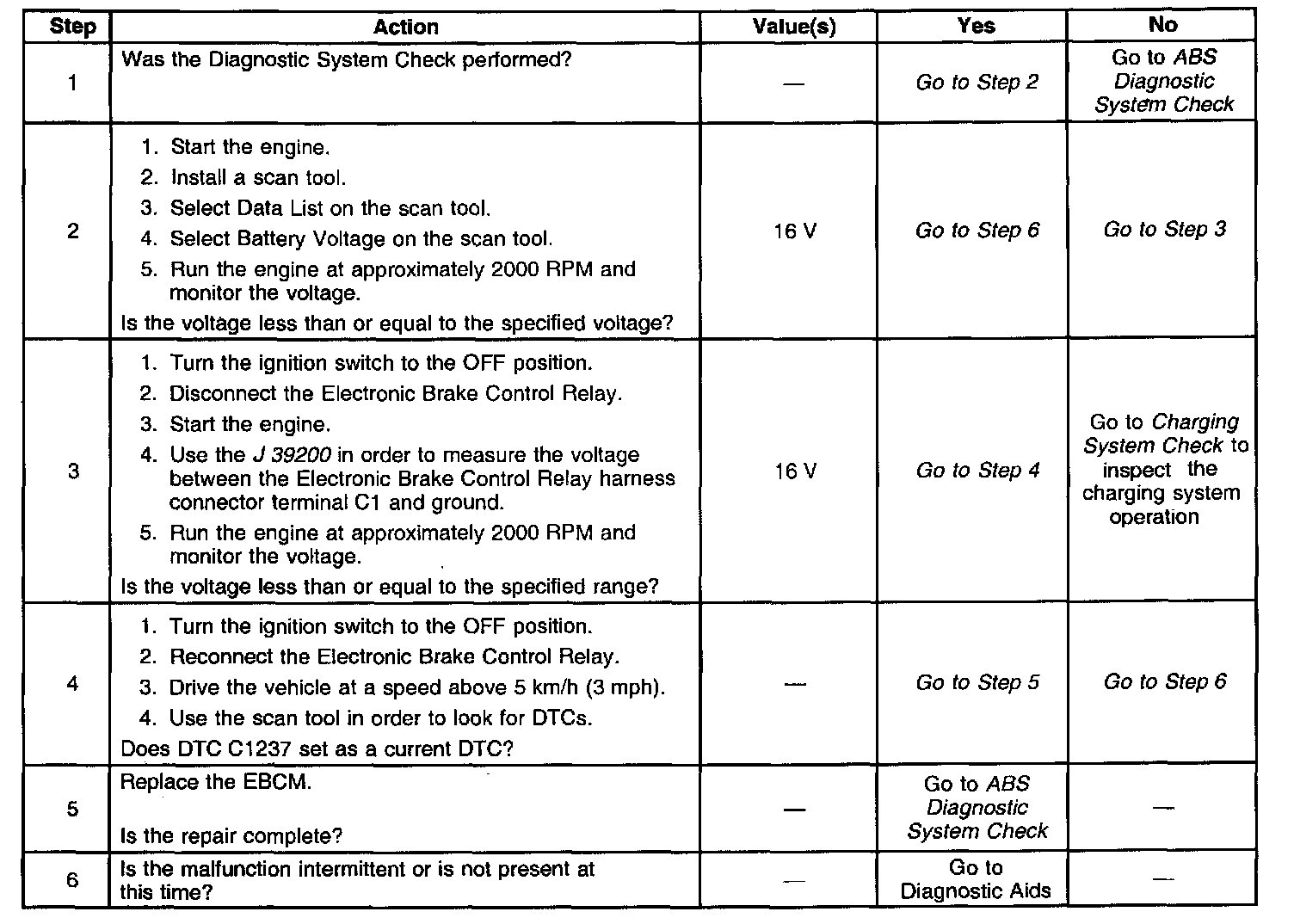

Use the enhanced diagnostic function of the Scan Tool in order to measure the frequency of the malfunction. Refer to the Scan Tool manual or Scan Tool Diagnostics.
Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
^ Backed out terminals
^ Improper mating
^ Improperly formed or damaged terminals
^ Poor terminal-to-wiring connections
^ Physical damage to the wiring harness

IMPORTANT: Zero the J 39200 test leads before making any resistance measurements.
