Band Apply Servo: Service and Repair

Removal Procedure

^ Tools Required
- J 35534 Piston Cover Depressor

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

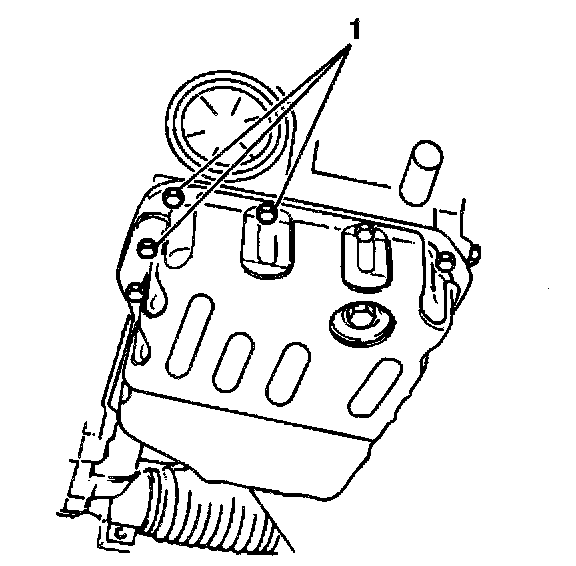

2. Remove 3 transaxle fluid pan bolts (1).





3. Install J 35534. Tighten the adjustment bolt on the J 35534 until you can remove the snap ring from the servo cover (1).





4. Remove the servo cover snap ring (11).
5. Remove the J 35534 after slowly loosening adjustment bolt.
6. Remove the following components:
^ The servo cover (10)
^ The servo piston (7)
^ The springs (4, 5)
^ The piston rod (1)
7. Inspect the intermediate servo assembly.

Installation Procedure

^ Tools Required
- J 35534 Piston Cover Depressor
- J 36850 Transjel(R) Transmission Assembly Lubricant





Notice: After making sure all parts are clean, liberally apply J 36850 to all servo parts prior to assembly. This serves to prelubricate seals and to ensure ease of assembly.

1. Install the following components:
^ The piston rod (1)
^ The springs (4, 5)
^ The piston (7)
^ The piston cover





2. Install J 35534 and tighten the adjustment bolt in order to install the snap ring on the servo cover (1).
3. Install the servo cover snap ring.
4. Remove the J 35534.





Notice: Refer to Fastener Notice in Service Precautions.

5. Install three transaxle fluid pan bolts (1).
Tighten the fluid pan bolts to 6 Nm (53 inch lbs.).
6. Lower the vehicle.
7. Refill the transaxle, as necessary. Refer to Transmission Fluid Checking Procedure.
