Home
>>
Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics

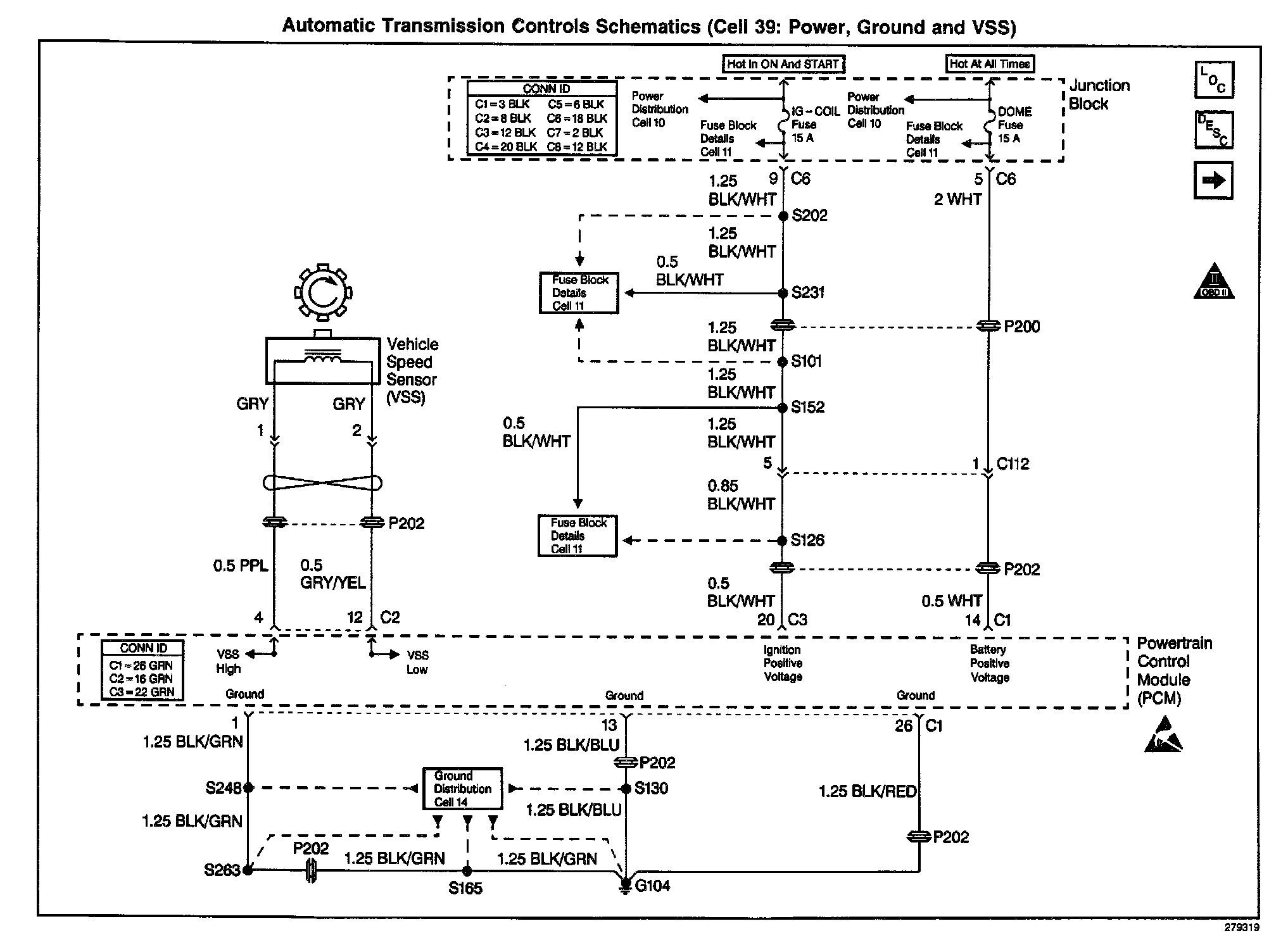

Power Ground and
VSS

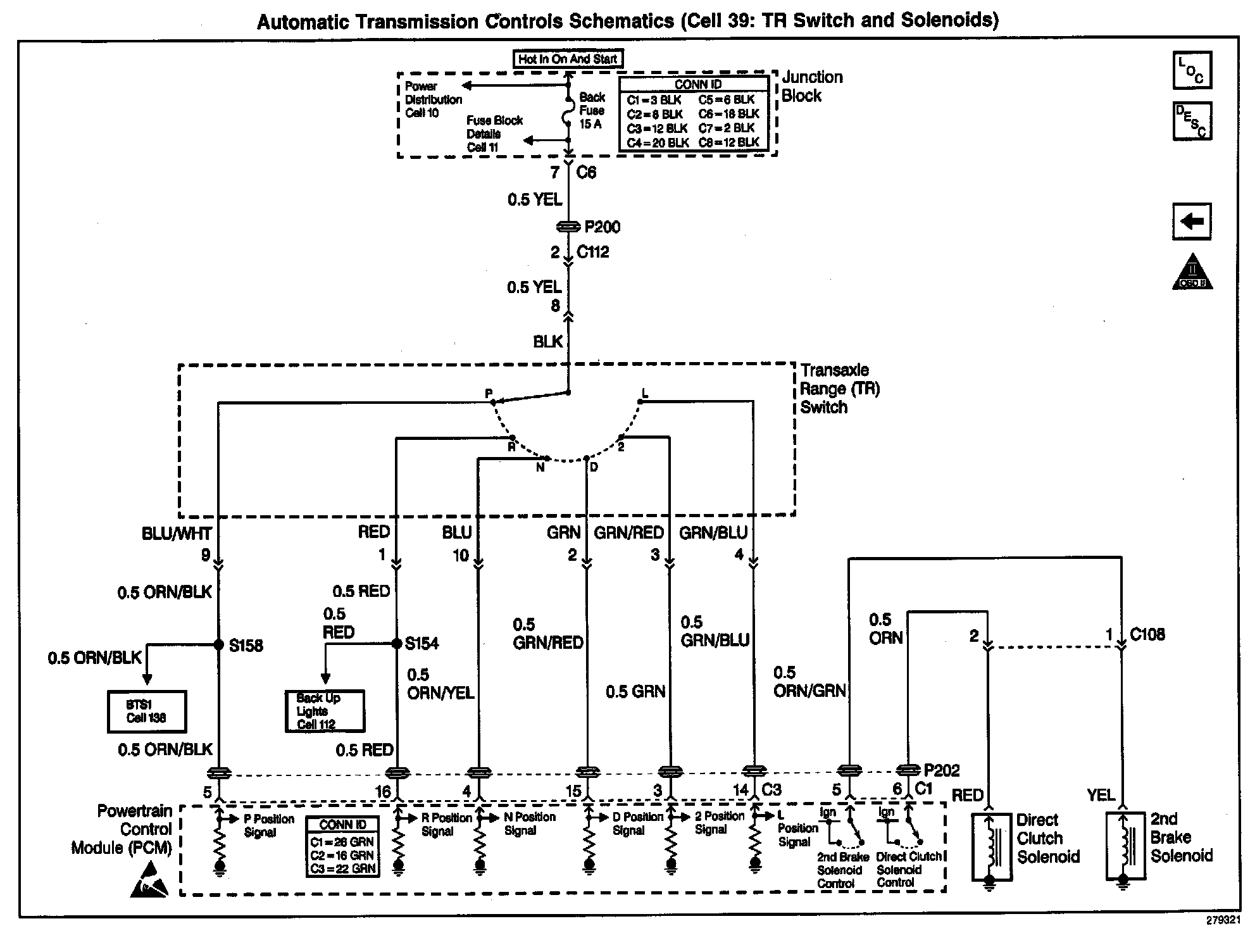

TR Switch and Solenoids
