Fuse Block
Fuse Block

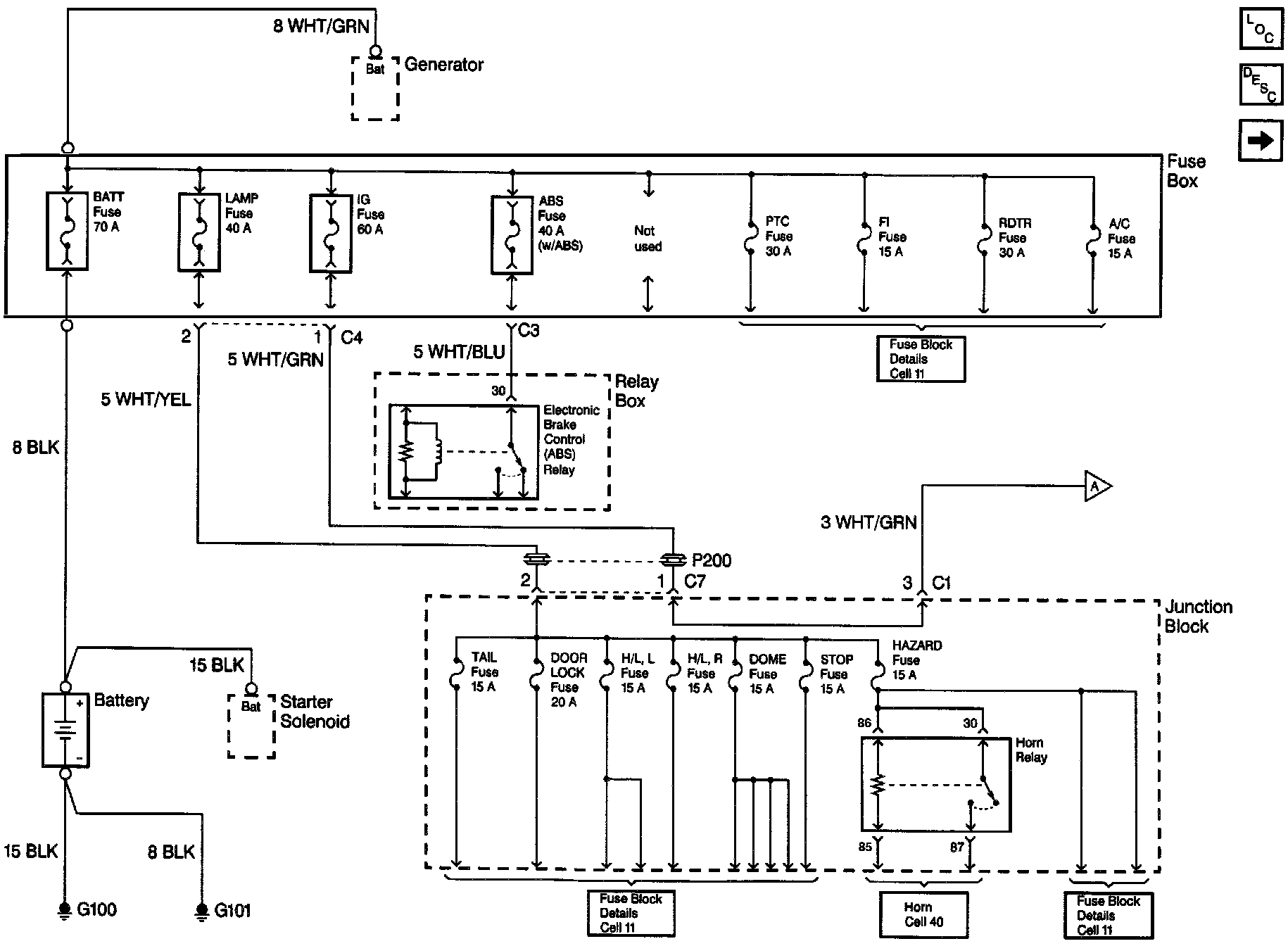

Power Distribution Schematics: Batt, Lamp, IG, ABS, PTC, FI, RDTR, A/C, Tail, Door Lock, H/L, L, R, Dome, Stop, Hazard Fuses (Part 1 Of 2):
Fuse Block Details Schematics: Horn Relay:
