Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G203
G203

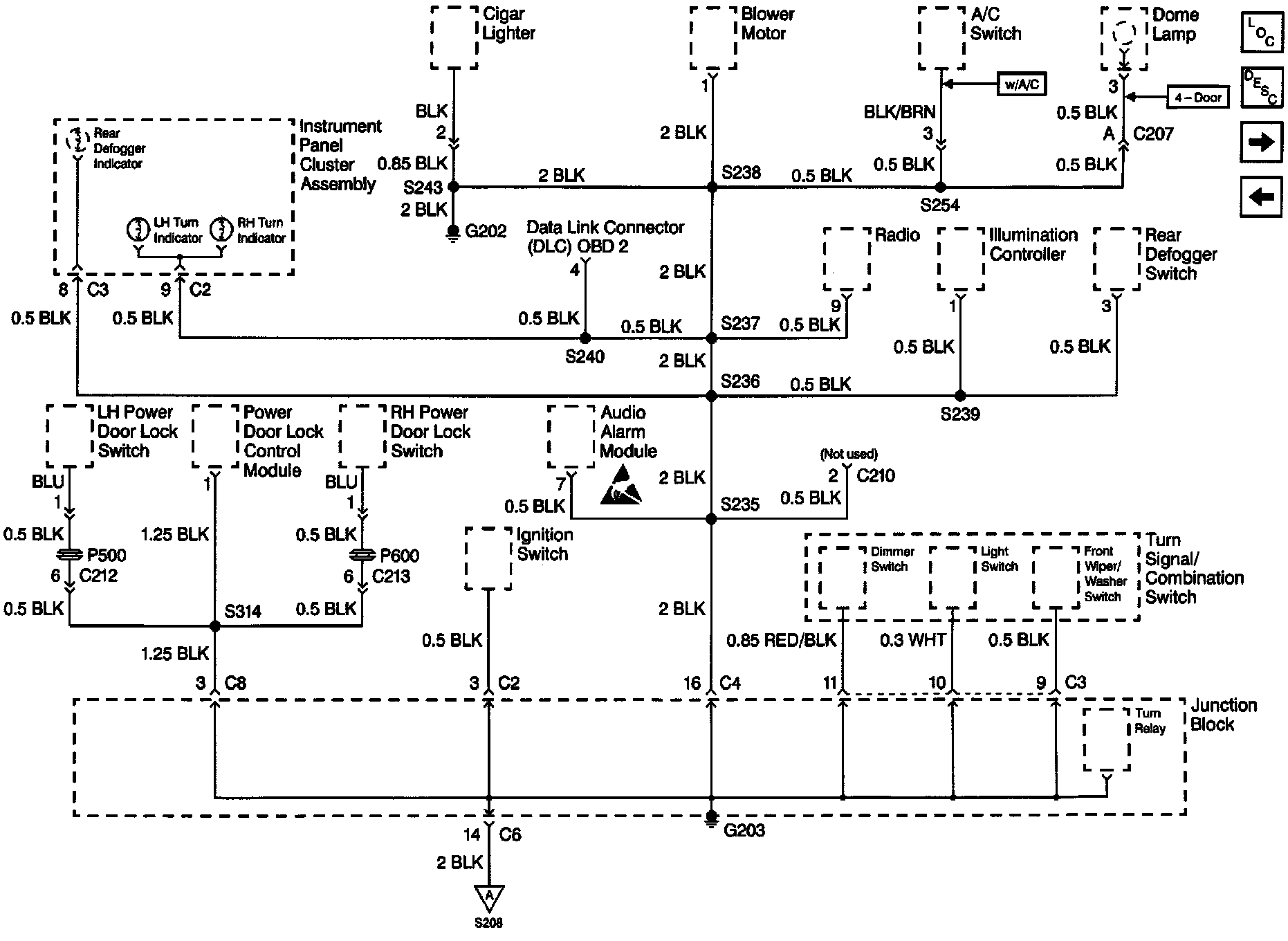

Ground Distribution Schematics: G102, G201, G202, And G203 And Cigar Lighter:
