Home
>>
Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G202
G202

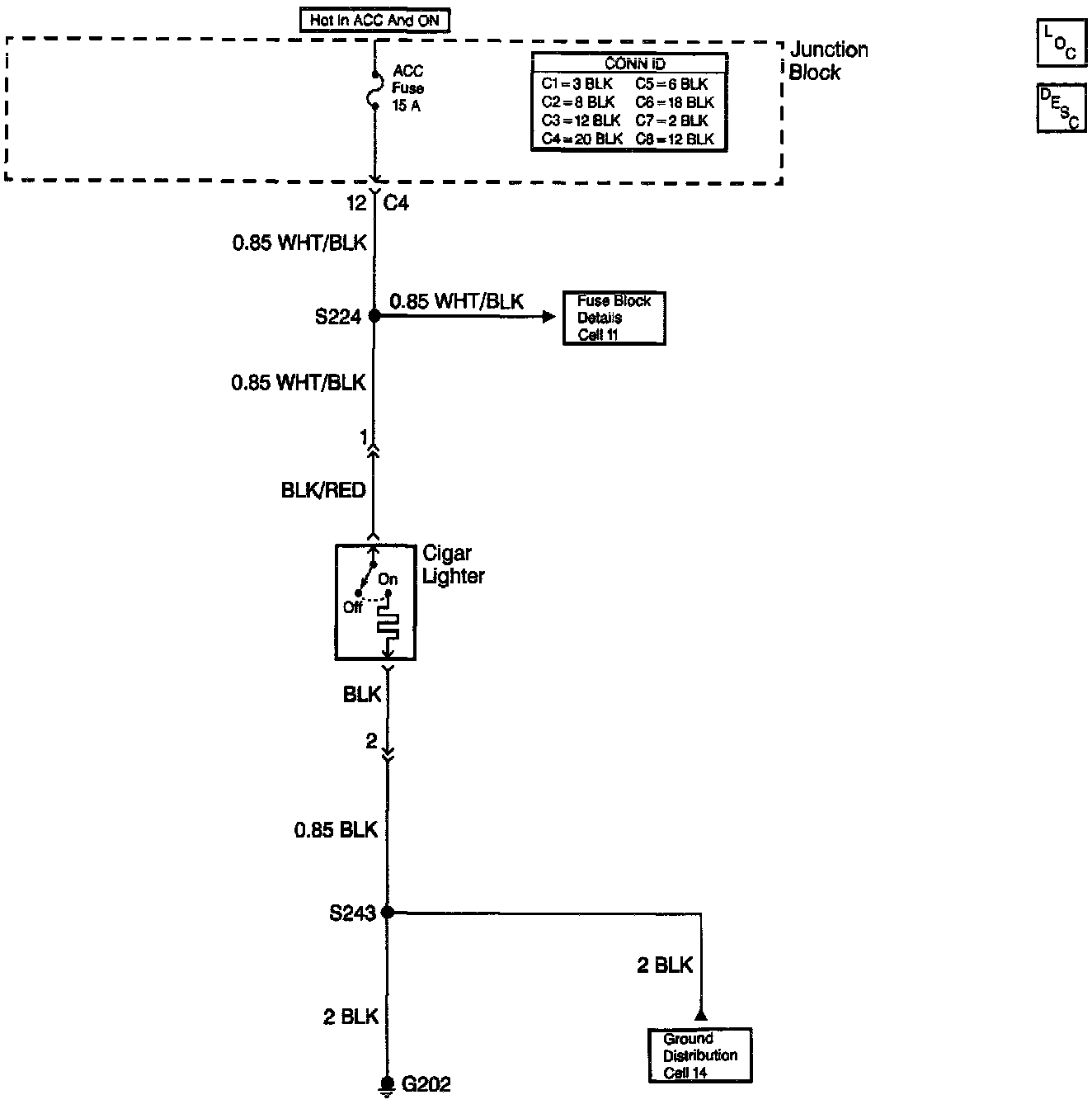

Cigar Lighter/Auxiliary Outlets Schematics:
