Temperature Control Cable Adjustment

Temperature Control Cable Adjustment

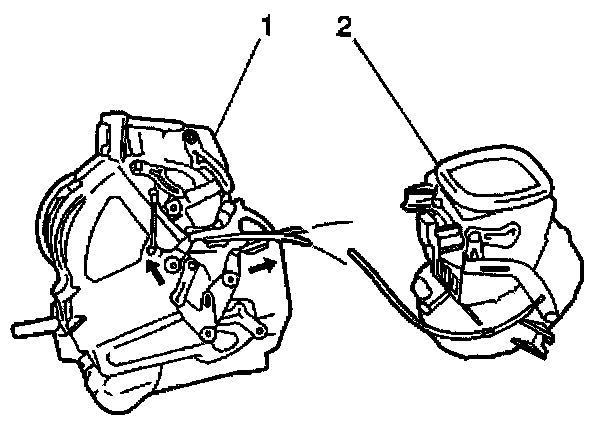

1. Disconnect the temperature control cable from the clip and the door at the heater case (1).
2. Set the temperature lever to full COLD.
3. At the heater case push the door lever fully forward (counterclockwise) and affix the cable into position.
4. Test the temperature lever for smooth operation. Ensure that the lever stops at the proper positions.
