HVAC System - Manual
>>
HVAC Compressor/Condenser Fan Control Schematics
>>
A/C Relays, Condenser Fan and Compressor Clutch
A/C Relays, Condenser Fan and Compressor Clutch

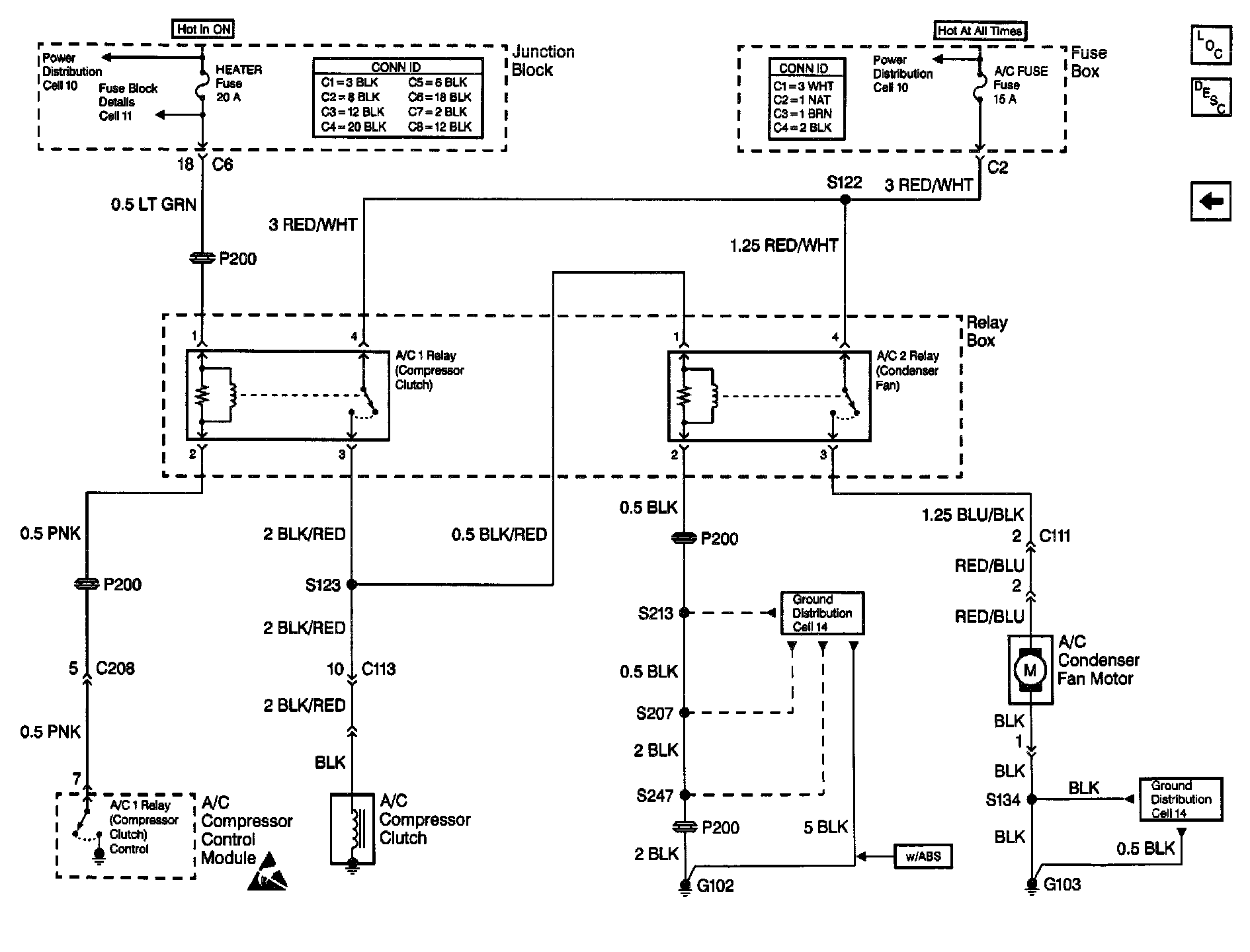

HVAC Compressor/Condenser Fan Control Schematics: A/C Relays, Condenser Fan And Compressor Clutch:
