Brake Modulator Gear Replacement
REMOVAL PROCEDURECAUTION: The modulator drive gears are under spring load and will turn during disassembly. After removing brake modulator drive gear cover, exercise extreme care not to place fingers into the gear set, since fingers can be pinched by rotating gears.

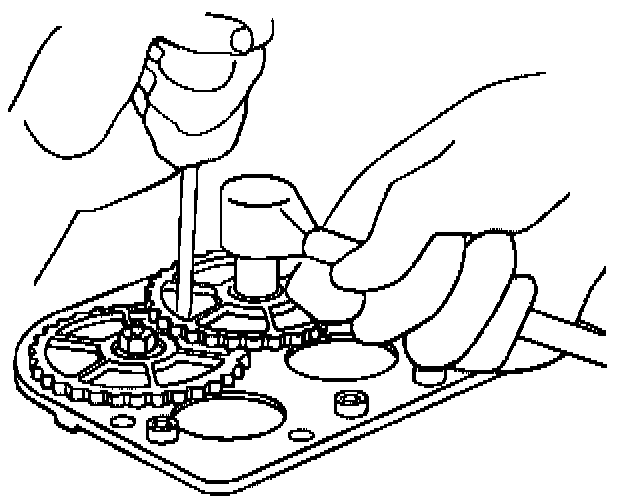

NOTICE: Do not allow gear to turn while removing the retaining nut, since the modulator piston can hit the top of the modulator bore, damaging the piston. Place a screwdriver through the holes in the gears (not between the gears) into the recessed hole in the modulator base. This will prevent the gear from turning, aiding in gear removal.
IMPORTANT: Do not repair damaged motor packs or brake modulators. Other than modulator drive gears replacement, repair of the motor pack and brake modulator assemblies is not authorized. Do not oil or lubricate the gears on the motor pack.
1. Remove the Hydraulic Modulator Assembly.

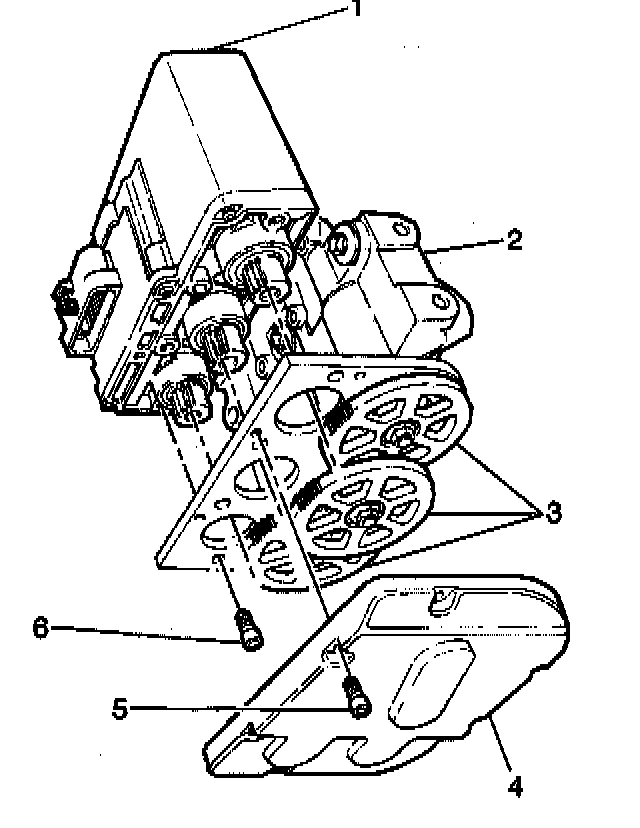

2. Remove the six Torx(R) head screws (5) that attach the gear cover (4).
3. Remove the gear cover (4) from the motor pack assembly (1).
4. Remove the four motor pack to modulator Torx(R) head screws (6).
IMPORTANT: Use care when handling the motor pack. Replace the motor pack if the motor pack is dropped or damaged during handling.
5. Separate the motor pack (1) from the Hydraulic Modulator (2).
NOTICE: Do not allow gear to turn while removing the retaining nut, since the modulator piston can hit the top of the modulator bore, damaging the piston. Place a screwdriver through the holes in the gears (not between the gears) into the recessed hole in the modulator base. This will prevent the gear from turning, aiding in gear removal.
6. Remove the three modulator drive gear retaining nuts.
7. Remove the gears from the modulator.
INSTALLATION PROCEDURE
1. Position the modulator drive gears (3) onto the modulator drive shaft.
NOTICE: Refer to Fastener Notice in Service Precautions.
2. Install the three gear retaining nuts.
^ Tighten the nuts to 8.5 Nm (76 inch lbs.).

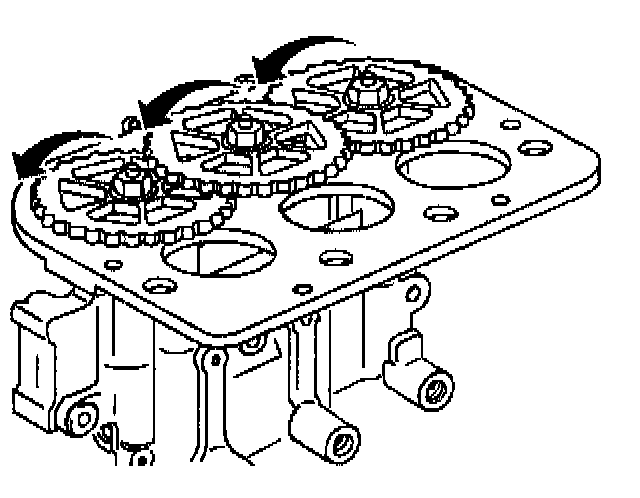

3. With either of the modulators positioned upside down, and the gears facing your, rotate each ABS brake modulator gear counterclockwise until movement stops.
Rotating the modulator gears will cause the following conditions:
^ The pistons on the ABS brake modulator will be positioned very close to the top of the modulator bore.
^ The brake bleeding procedure is simplified.
IMPORTANT: Use care when handling the motor pack. Replace the motor pack if the motor pack is dropped or damaged during handling.
4. Position the motor pack (1) onto the modulator (2), aligning the three motor pack gears with the modulator gears (3).
NOTICE: Refer to Fastener Notice in Service Precautions.
5. Install the four motor pack to modulator Torx(R) head screws (6).
^ Tighten the four Torx(R) head screws (6) to 5 Nm (44 inch lbs.).
6. Install the gear cover (4) onto the modulator (2) with the six Torx(R) head screws (5).
^ Tighten the six Torx(R) head screws (5) to 4 Nm (36 inch lbs.).
7. Install the Hydraulic Modulator assembly into the vehicle.
8. Perform the Motor Rehome Procedure.
9. Perform the ABS Diagnostic System Check.
