Knee Bolster Replacement

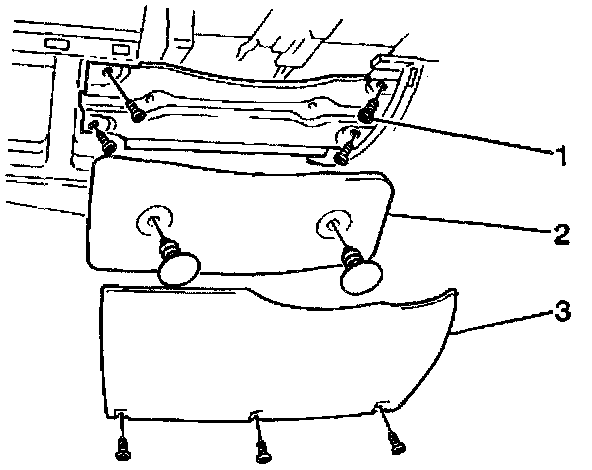

REMOVAL PROCEDURE
1. Remove the knee bolster trim panel.
2. Remove the following components from the vehicle:
^ The 2 plastic clips
^ The energy absorber (2)
3. Remove the following components from the instrument panel:
^ The 4 screws
^ The knee bolster(1)

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the knee bolster (1) to the vehicle. Secure the knee bolster with the 4 bolts.

Tighten
Tighten the knee bolster bolts to 10 N.m (89 lb in).

2. Install the energy absorber (2). Secure the energy absorber with the 2 clips.
3. Install the knee bolster trim panel.
