Wiper Motor Cover Replacement

REMOVAL PROCEDURE
1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Disconnect the electrical connector from the wiper motor.

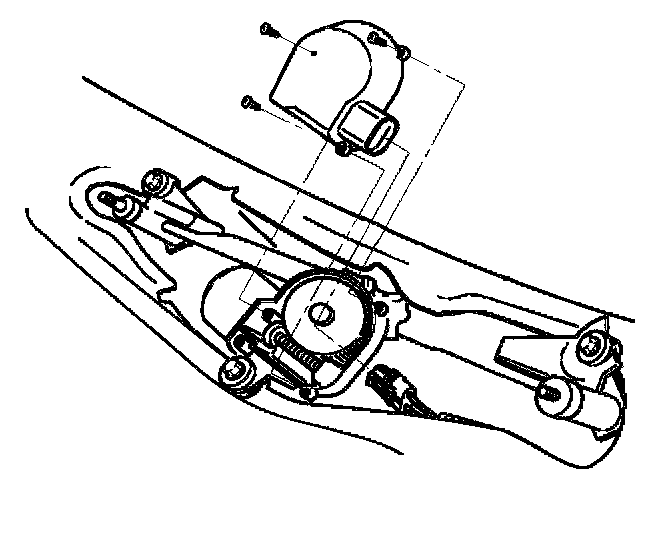

4. Remove the 3 screws and the wiper motor cover from the wiper motor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the wiper motor cover onto the wiper motor with the 3 screws.

Tighten
Tighten the 3 screws to 2 N.m (18 lb in).

2. Connect the electrical connector to the wiper motor.
3. Install the air inlet grille panel.
4. Install the wiper arms.
5. Operate the wipers and inspect for proper operation.
