Accelerator Pedal: Service and Repair

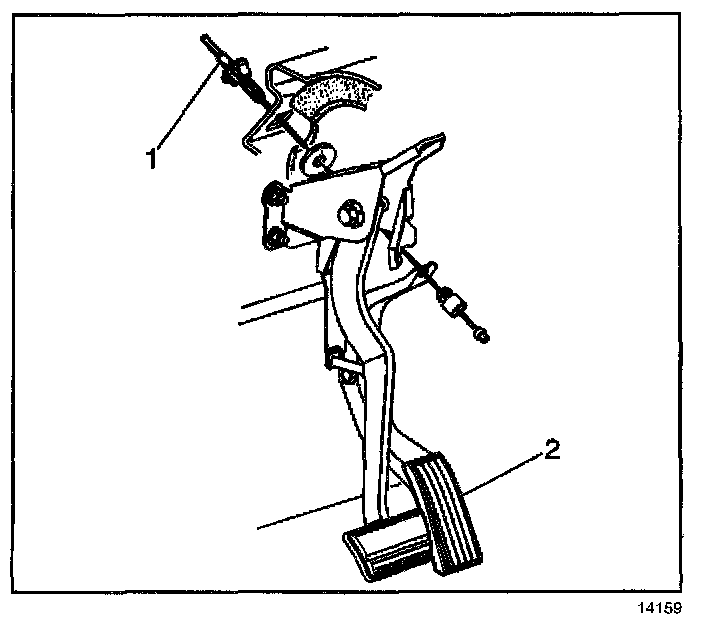

REMOVAL PROCEDURE
1. Remove the left instrument panel sound insulator.
2. Disconnect the accelerator cable from accelerator pedal.
3. Remove the accelerator pedal nuts to cowl.
4. Remove the accelerator pedal assembly.

INSTALLATION PROCEDURE
1. Install the accelerator pedal assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the accelerator pedal bolt (3) and stud (2).

Tighten
The accelerator pedal assembly bolts and studs to 3.0 N.m (27 lb in).

3. Connect the accelerator cable to the accelerator pedal.
4. Inspect the accelerator pedal.
^ Check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.
^ The throttle should operate freely without binding between full closed and wide open throttle.
5. Reinstall left instrument panel sound insulator.
