Canister Purge Control Valve: Service and Repair

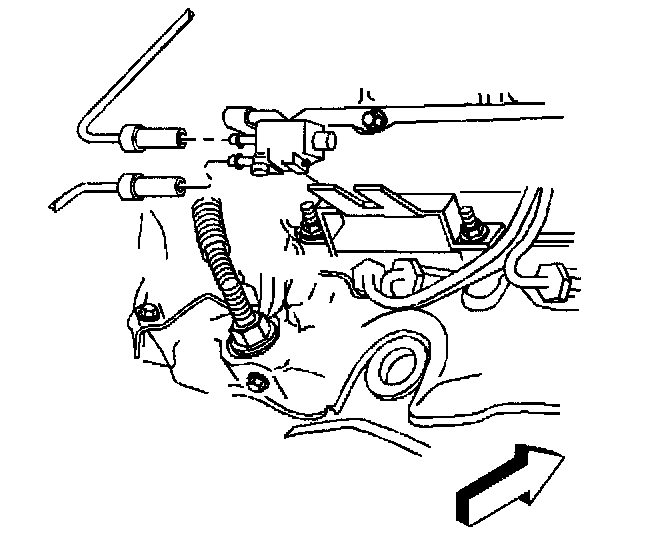

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Remove the negative battery cable.
2. Note the position of the hoses for installation.
3. Remove the electrical connector and hoses from solenoid.
4. Release the lock tab on the solenoid mounting bracket.
5. Remove the solenoid.

INSTALLATION PROCEDURE
1. Bend tab on mounting bracket to retain the EVAP purge solenoid valve.
2. Install the solenoid to solenoid mounting bracket. Once installed pull on the solenoid to ensure that the part will be held in place.
3. Install the electrical connector and hoses to solenoid.
4. Connect the negative battery cable.
