Home >> Chevrolet >> 1999 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Junction Block >> RH IP Junction Block C2

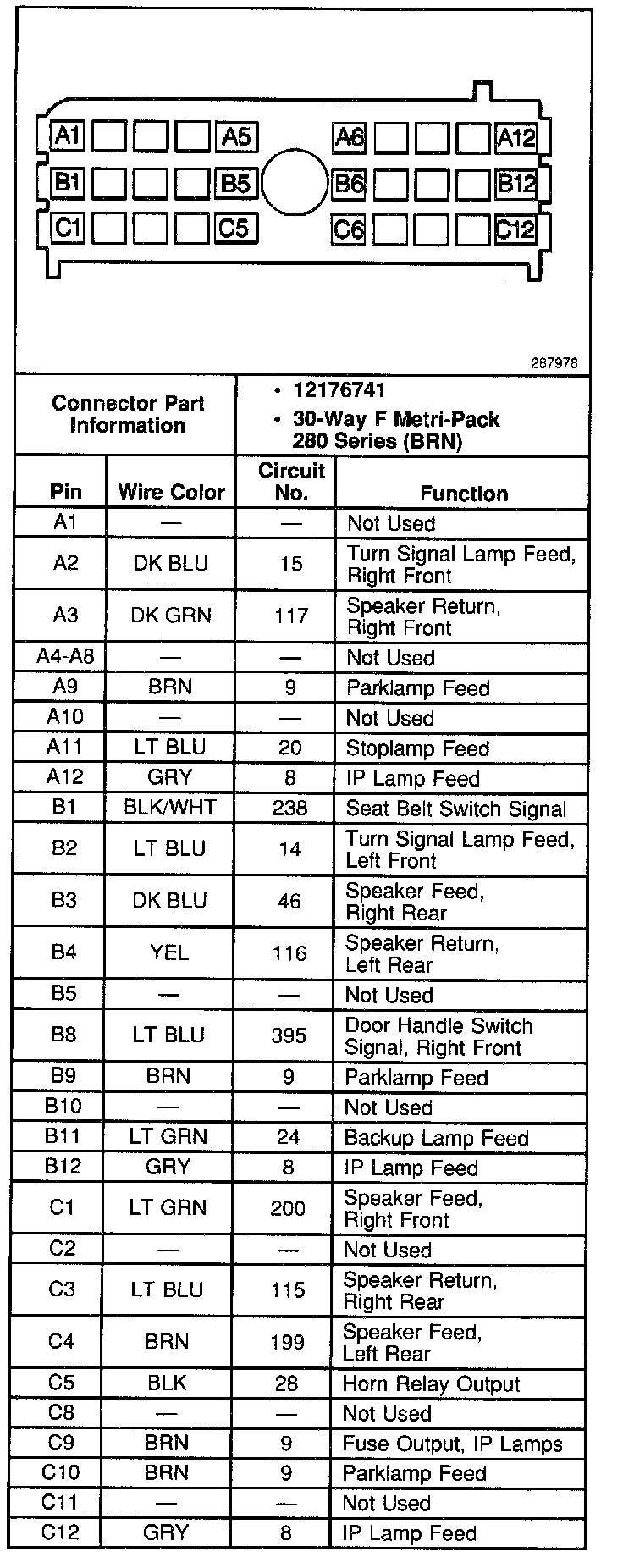

RH IP Junction Block C2

RH IP Junction Block C2:
