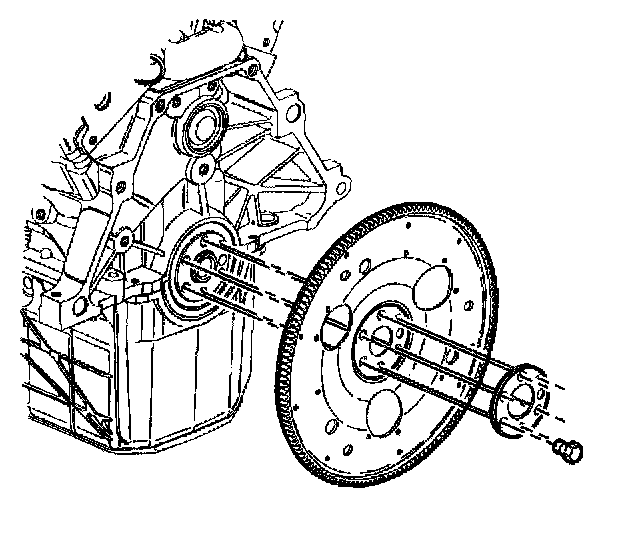

90. Engine Flywheel Installation

1. Install the flywheel.
2. Install the flywheel retainer.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the flywheel bolts.

- Tighten the flywheel bolts to 71 Nm (52 ft. lbs.).
