87. Engine Mount Strut Bracket Installation - Engine Mount Support

Engine Mount Support and Strut Bracket Installation (N Car)

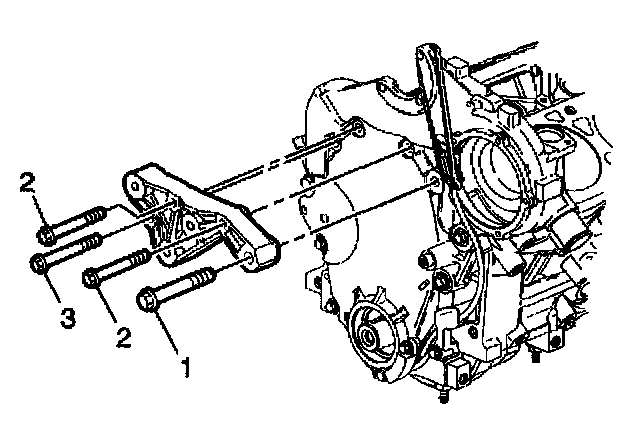

1. Install the engine mount support.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the engine mount support bolts.
2.1. Tighten the engine mount support bolt (1) to 55 Nm (41 ft. lbs.).
2.2. Tighten the engine mount support bolts (2) to 27 Nm (20 ft. lbs.).
2.3. Tighten the engine mount support bolt (3) to 55 Nm (41 ft. lbs.).
