Brake Caliper Bracket Replacement

REMOVAL PROCEDURE





1. Remove the front brake caliper.

CAUTION: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.

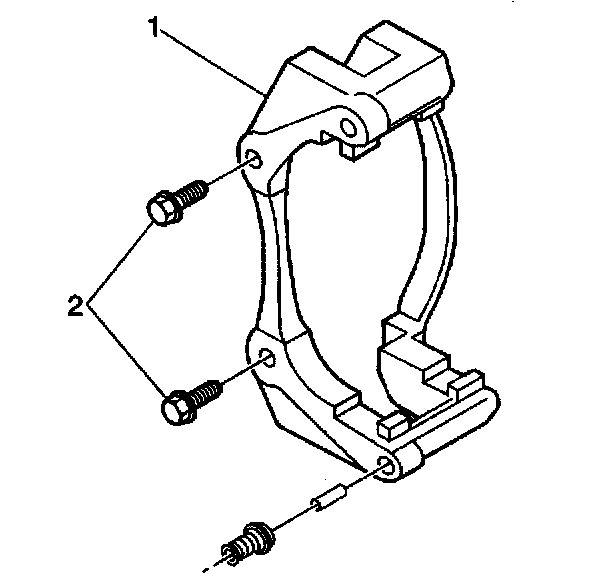

2. Remove the caliper bracket bolts (2).
3. Remove the caliper bracket (1).





4. Remove the bushings (2) from the bracket (1).
5. Inspect the bracket (1) for cracks. Replace the bracket (1) if necessary.

INSTALLATION PROCEDURE





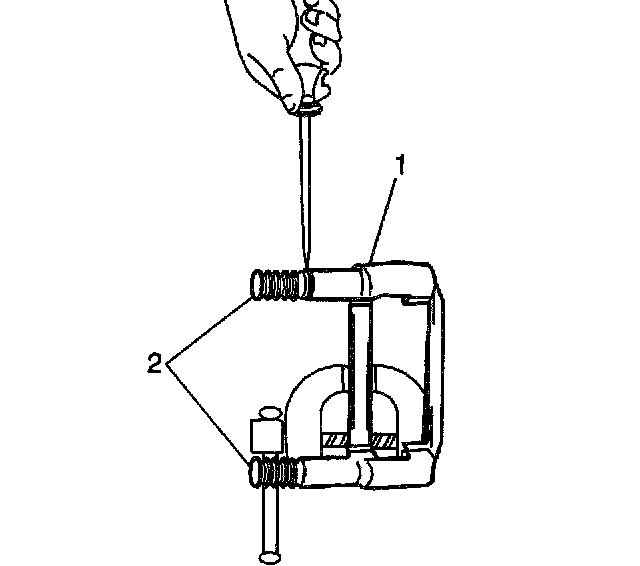

1. Lubricate the new bushings (1) with silicone grease.
2. Install the bushings (1) into the caliper bracket (2).





NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the caliper bracket (1) with the bracket bolts (2).
^ Tighten the caliper bolts to 185 Nm (137 lb ft).

4. Install the front brake caliper.
