Power Door Lock Switch: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the door handle bezel.

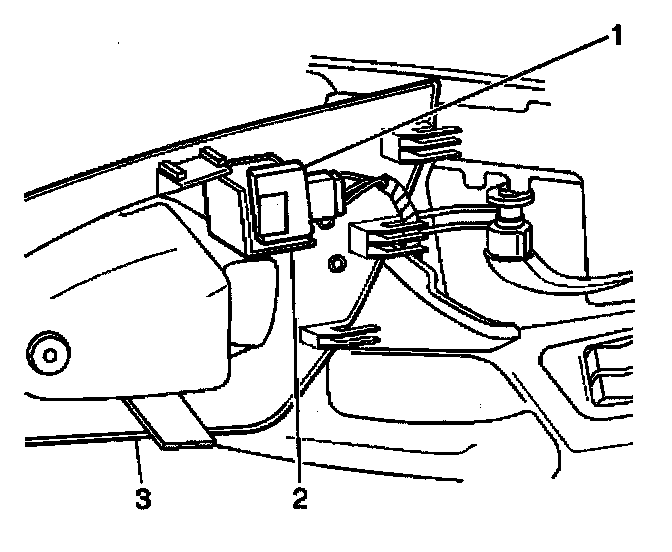

3. Remove the power door lock switch (2) from the door handle bezel (3) by prying the power door lock switch from the retainers.
4. Disconnect the electrical connector (1) from the power door lock switch (2).

INSTALLATION PROCEDURE
1. Install the power door lock switch (1) to the door handle bezel (3).
2. Connect the electrical connector (1) to the power door lock switch (2).
3. Install the door handle bezel.
4. Connect the negative battery cable.
