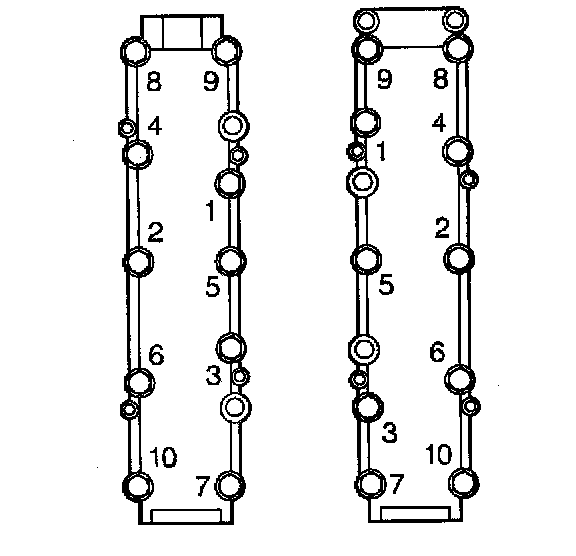

Camshaft Bearing Cap Torque & Sequence

Important: The top intake camshaft housing bolts are tightened to a different specification than the other camshaft housing bolts.

Install the bolts securing the camshaft housing to the cylinder head.
Rotate the bolts in sequence by the amount of degrees specified.

Using J 36660-A, tighten the bolts to 22 Nm (16 ft. lbs.) + 90 degrees.

Install the bolts which secure the camshaft housing cover to the camshaft housing.
Rotate the bolts in sequence by the amount of degrees specified.

Using J 36660-A, tighten to 22 Nm (16 ft. lbs.) + 30 degrees.
