Wiper Motor Linkage: Service and Repair

REMOVAL PROCEDURE
Tools Required
J 39232 Wiper Linkage Separator




1. Disconnect the wiper motor fuse. The fuse is located in the in5trument panel electrical center.
2. Remove the wiper arm assemblies.
3. Remove the air inlet screen.
4. Remove the wiper motor module assembly.

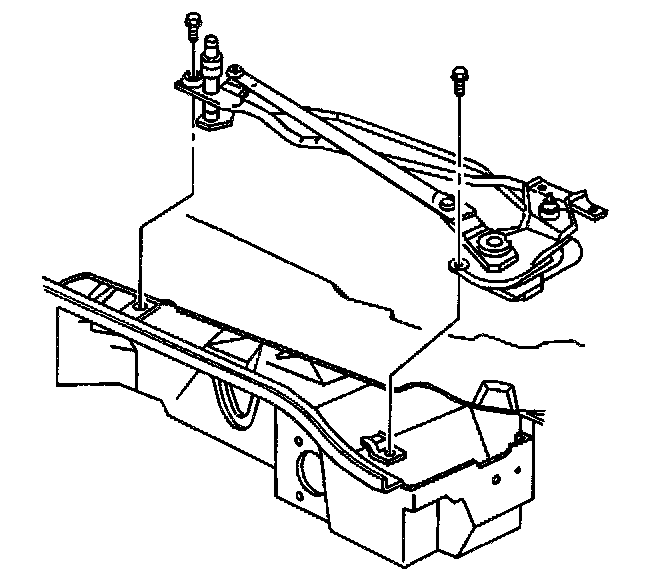

5. Remove the RH wiper transmission mounting bolts.
6. Remove the RH wiper transmission from the wiper transmission linkage using J 39232.
7. Disconnect the wiper transmission linkage from the wiper motor module assembly.
8. Remove the LH wiper transmission mounting bolts.
9. Remove the LH wiper transmission from the wiper transmission linkage.

INSTALLATION PROCEDURE
Tools Required
J 39529 Wiper Linkage Installer

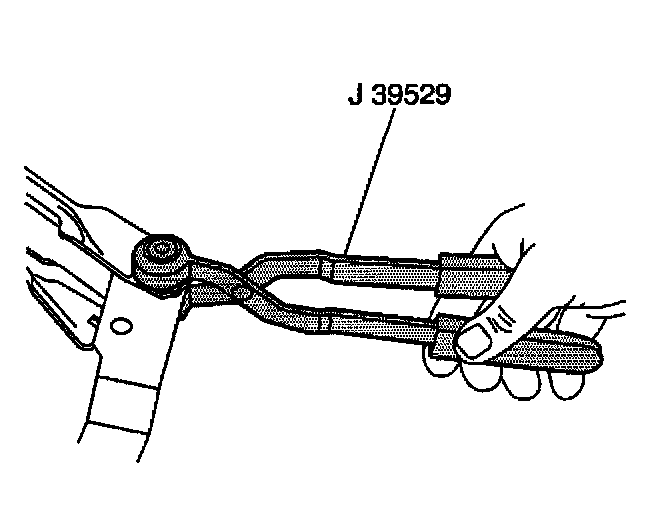

1. Install the LH wiper transmission into the wiper transmission linkage using tool J 39529.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the LH wiper transmission mounting bolts.

Tighten
Tighten the wiper transmission mounting bolts to 10 N.m (89 lb in).

3. Connect the wiper transmission linkage onto the wiper motor.
4. Install the RH wiper transmission into the wiper transmission linkage.

Tighten
Tighten the wiper transmission mounting bolts to 10 N.m (89 lb in).




5. Install the wiper motor module assembly.
6. Install the air inlet screen.
7. Install the wiper arm assemblies.
8. Install the wiper motor fuse.
