Window Adjustment - Door (Forward/Rearward)

WINDOW FORWARD/REARWARD ADJUSTMENT




1. Remove the door trim panel.
2. Reconnect the window switch to the door harness (3).
3. Raise the window.
4. Disconnect the window switch from the harness.

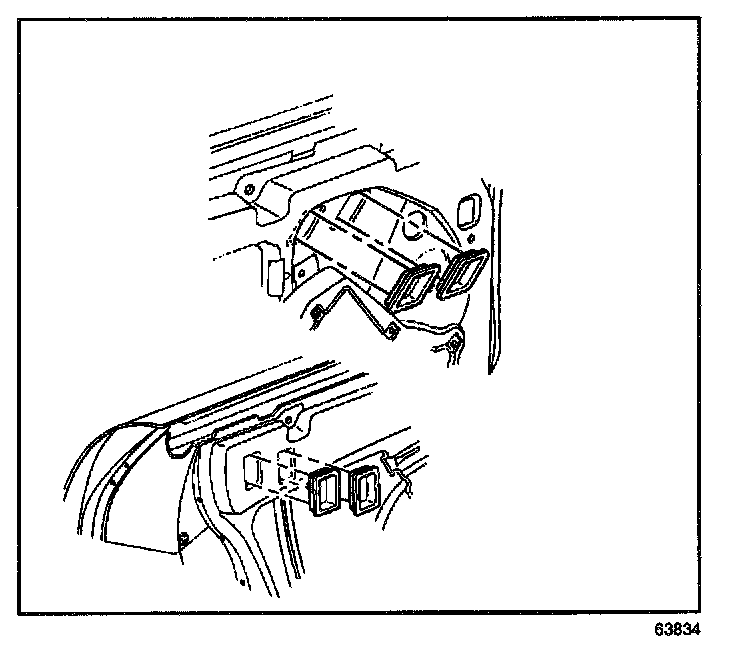

5. Remove the window clamp sight access plugs.




6. Sit in the vehicle and close the door.
7. Loosen the window clamps.
8. With the aid of an assistant standing outside of the vehicle, position the window in the door opening.

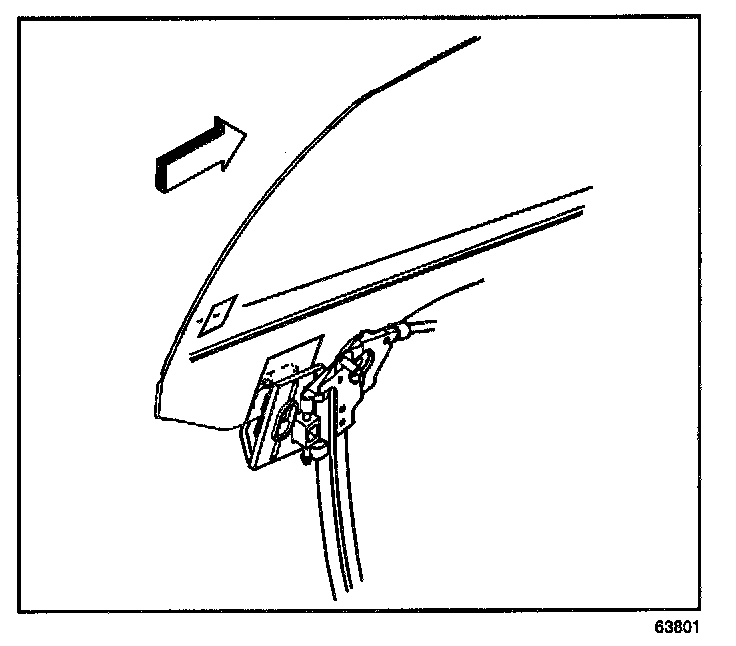

9. Slide the window forward or rearward in the window clamps as necessary.

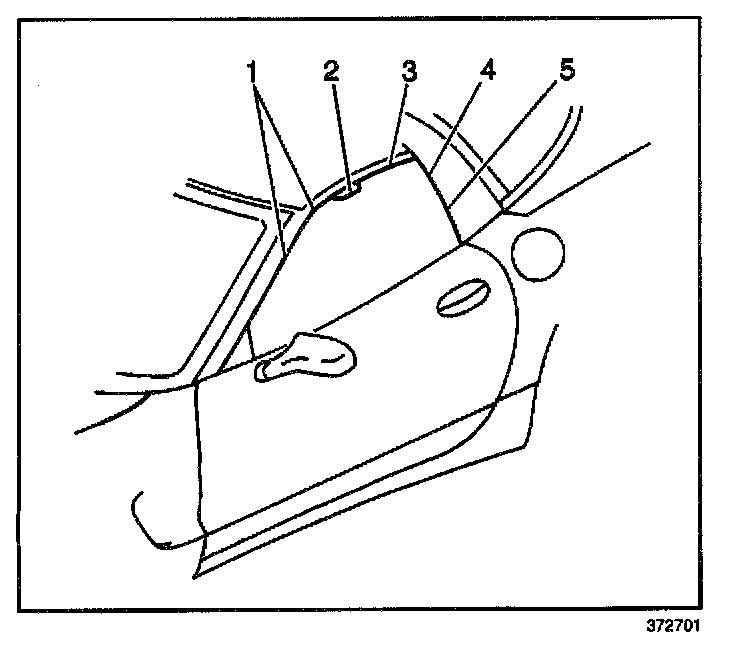

^ The gap to the reveal molding (1) should be 5 to 8 mm (0.2 to 0.3 in).
^ The gap to the retainer (3) should be 5 to 8 mm (0.2 to 0.3 in).

NOTE: Refer to Fastener Notice in Service Precautions.

10. From inside the vehicle tighten the window clamps

Tighten
Tighten the window regulator window clamp nuts to 10 N.m (89 lb in).




11. Open the door and install the window clamp sight access plugs.
12. Install the door trim panel.
13. Perform minor height and minor tip-in adjustments as necessary. Refer to Window Tip-in Adjustment -Door and Window Height Adjustment - Door Minor.
