Pilot Bearing: Service and Repair

Removal Procedure

Notice: DO NOT use grease under pressure to force the pilot bearing from the crankshaft or engine damage may result.

^ Tools Required
^ J 23907 Clutch Pilot Bearing Remover





1. Remove the clutch pressure plate and clutch driven plate. Refer to Clutch Pressure Plate and Clutch Driven Plate.
2. Using the J23907, remove the clutch pilot bearing.

Installation Procedure

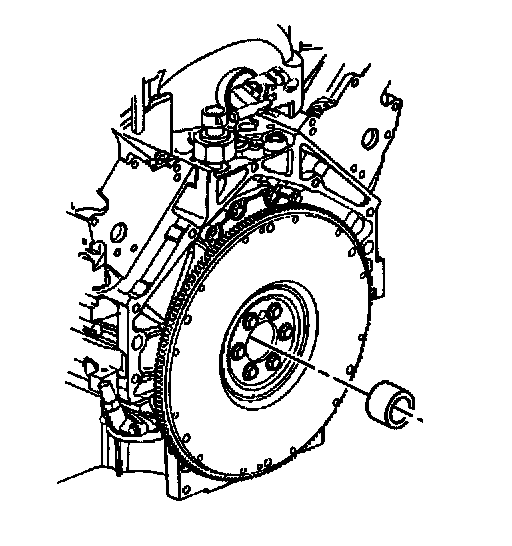

1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch pressure plate and clutch driven plate. Refer to Clutch Pressure Plate and Clutch Driven Plate.
