Rear

REMOVAL PROCEDURE

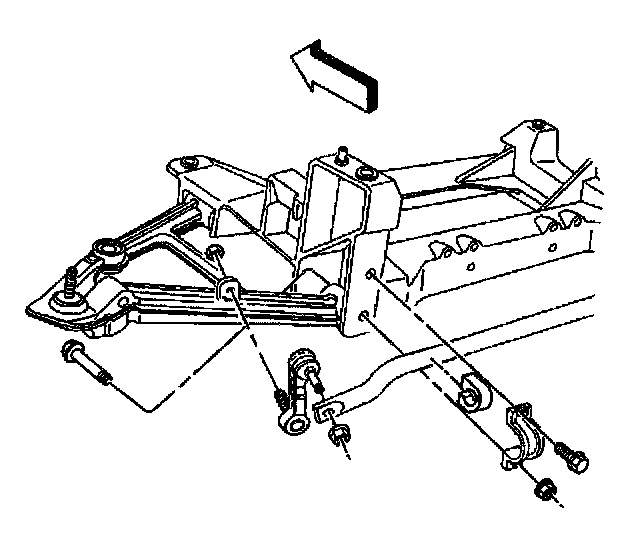

1. Raise and support the vehicle. Refer to Vehicle Lift Points.
2. Remove the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the stabilizer shaft link nuts from the lower control arms.
4. Remove the stabilizer shaft link nuts and links from the shaft.

INSTALLATION PROCEDURE





1. Install the stabilizer shaft links and link nuts to the stabilizer shaft and to the lower crossmember.
2. Tighten the stabilizer shaft link nuts.

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the stabilizer shaft link nuts to 72 Nm (53 ft. lbs.).

3. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
4. Lower the vehicle.
