Front

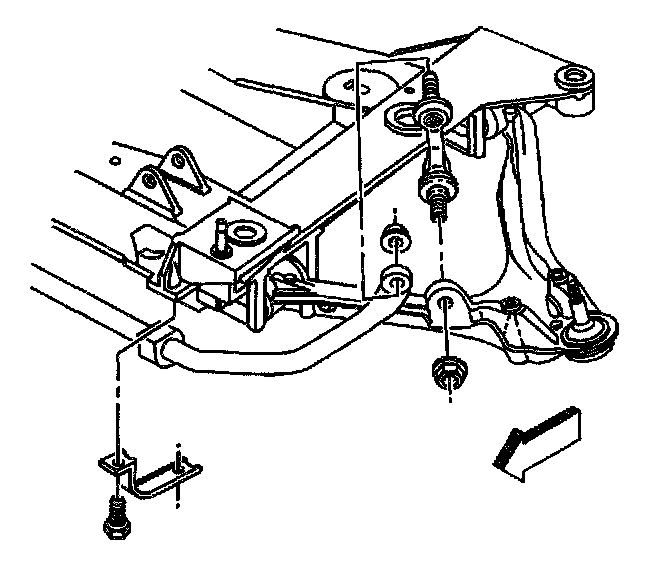

REMOVAL PROCEDURE





1. Raise and support the vehicle. Refer to Vehicle Lift Points.
2. Remove the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the stabilizer shaft link nuts from the stabilizer shaft.
4. Remove the stabilizer shaft insulator clamps from the front crossmember.
5. Remove the stabilizer shaft from the vehicle.

INSTALLATION PROCEDURE





1. Install the stabilizer shaft, insulator clamps and bolts to the crossmember.
2. Install the stabilizer shaft links to the stabilizer shaft.
3. Install the stabilizer shaft link nuts.

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the stabilizer shaft link nuts to 72 Nm (53 ft. lbs.).

4. Install the stabilizer shaft insulator clamp bolts.

- Tighten the stabilizer shaft insulator clamp bolts to 58 Nm (43 ft. lbs.).

5. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
6. Lower the vehicle.
