Tilt Spring - Disassemble - Telescoping

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble -Off Vehicle (Telescoping Column)

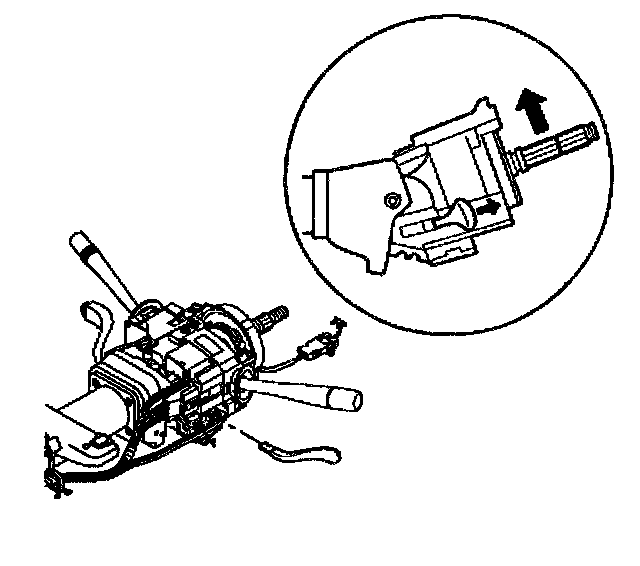

2. Use the tilt lever to tilt the column in the up position.

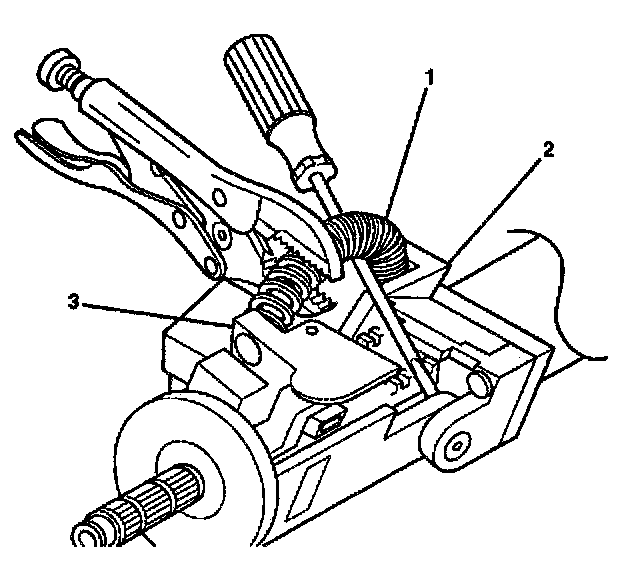

3. Perform the following steps to remove the tilt spring (1):
3.1. Pry the tilt spring (1) up with a screwdriver until a bulge occurs. The spring tension is mostly removed.
3.2. Secure the tilt spring (1) with locking pliers.
3.3. Continue to pry until the tilt spring (1) disengages from the post on the steering column support (2) and the steering column tilt head assembly (3).

CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the It spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.





4. Remove the spring guide (1) from the tilt spring (2).
