Tilt Spring - Assemble - Non-Telescoping

ASSEMBLY PROCEDURE

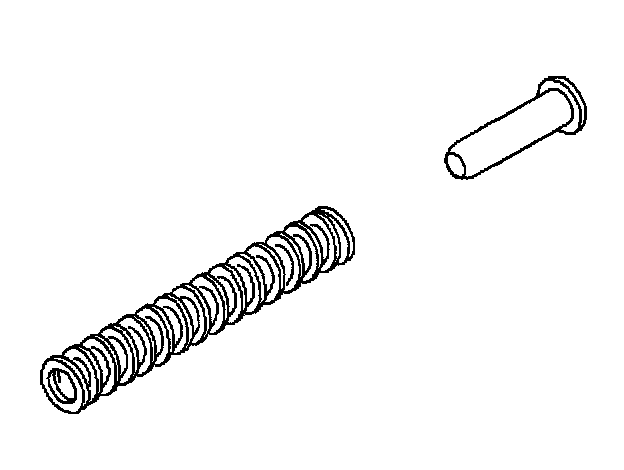

1. Install the spring guide (1) to the tilt spring (2).
Lubricate with synthetic grease (service kit).

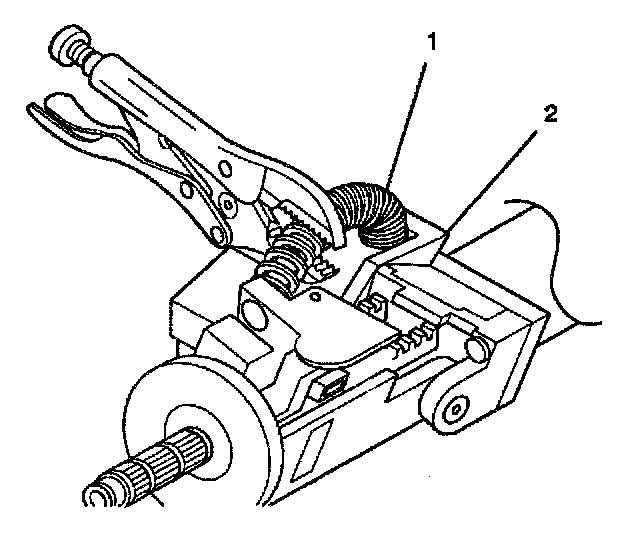

2. Perform the following steps to install the tilt spring (1):
2.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
2.2. Secure the tilt spring (1) with locking pliers.
2.3. With end of tilt spring (1) on the post, pull on the center of the tilt spring (1) while pushing the guide end to the post on the steering column tilt head assembly.
2.4. With both ends installed to the post, push the tilt spring (1) into position.

CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.

3. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble -Off Vehicle (Non-Telescoping Column).
