Turn Signal & Multifunction Switch - Assemble

ASSEMBLY PROCEDURE

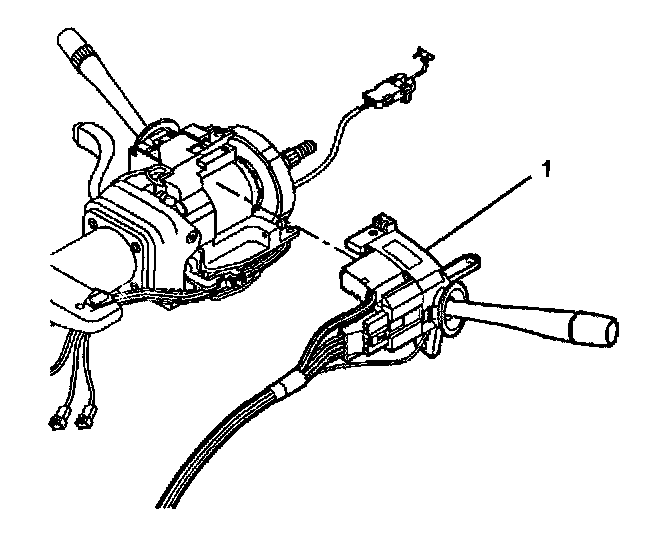

1. Install the turn signal and multifunction switch assembly (1) to the steering column tilt head assembly.

IMPORTANT: The electrical contact must rest on the turn signal cancel cam assembly.





2. Install the 2 pan head tapping screws (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the screws to 7 Nm (62 inch lbs.).

3. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Telescoping Column).
