Telescope Motor - Disassemble

DISASSEMBLY PROCEDURE

- J 41352 Modular Column Holding Fixture
- J 42640 Steering Column Anti Rotation Pin





1. Insert J 41352 into a vise.
2. Secure the steering column to J 41352.
3. Insert J 42640 into the bottom of the lower shroud.

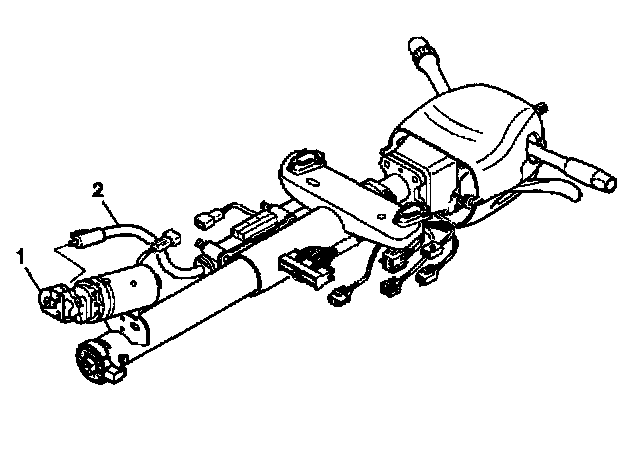

4. Disconnect the cable assembly (2) from the telescope drive motor assembly (1).

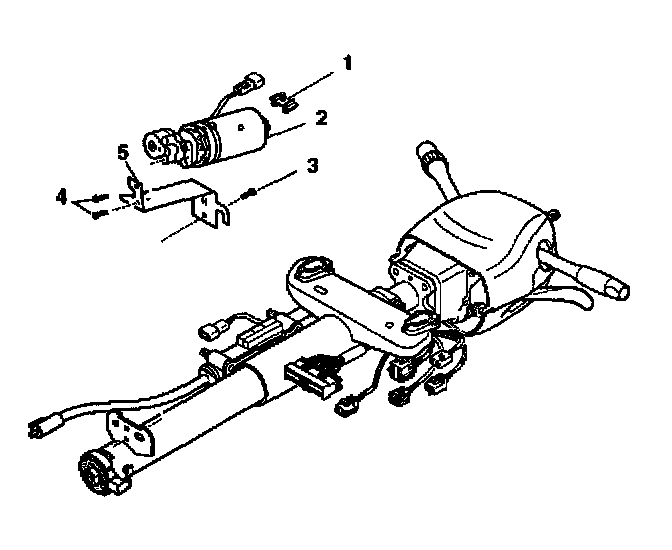

5. Remove the connector clip (1) from the telescope drive motor assembly connector (2).
6. Remove the 2 pan head tapping screws (4) from the telescope drive bracket (5).
7. Remove the telescope drive motor assembly (2) from the telescope drive bracket (5).
8. Perform the following steps for removal of the telescope drive bracket
8.1. Remove the pan head tapping screw (3) from the telescope drive bracket (5).
8.2. Remove the telescope drive bracket (5) from the telebearing and jacket assembly.
