Pivot & Pulse Switch

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble -Off Vehicle (Telescoping Column).
2. Remove all wire harness straps.
3. Disconnect connectors, if necessary.





4. Depress the top and bottom clips on the pivot and pulse switch assembly.
5. Slide the pivot and pulse switch assembly away from the electric column lock to disengage.

ASSEMBLY PROCEDURE





1. Slide the pivot and pulse switch assembly into the electric column lock until the clips engage.





2. Route the wire harness assembly along the steering column jacket assembly.
3. Connect the pivot and pulse switch assembly connector, if necessary.

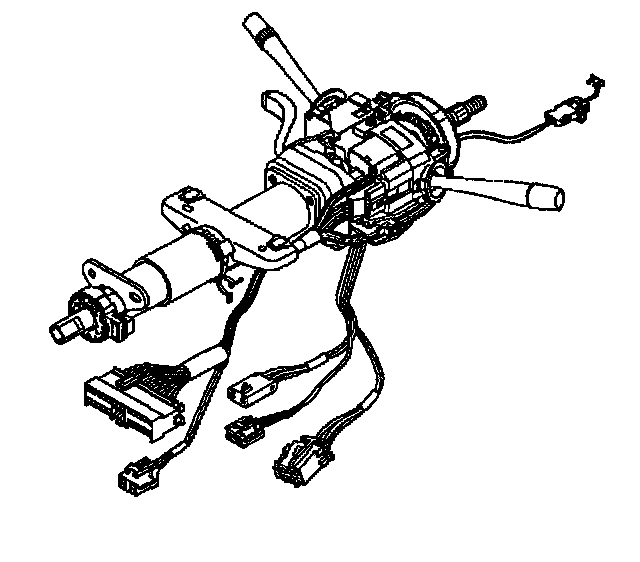

4. Install the wire harness straps (2) to the steering column tilt head assembly (1).





5. Pop the wire harness assembly (1) into the wire harness strap (2).
6. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble -Off Vehicle (Telescoping Column).
