Turn Signal & Multifunction Switch - Disassemble

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle (Non-Telescoping Column).
2. Remove the wire harness straps (2) from the steering column tilt head assembly (1).





3. Pop the wire harness assembly (1) from the wire harness strap (2).
4. Disconnect the turn signal and multifunction switch assembly connector.

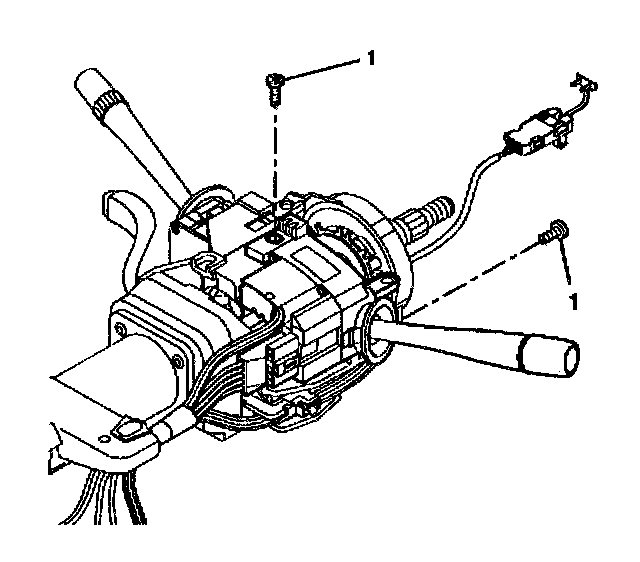

5. Remove the 2 pan head tapping screws (1).





6. Remove the turn signal and multifunction switch assembly (1).
