Turn Signal & Multifunction Switch - Assemble

ASSEMBLY PROCEDURE

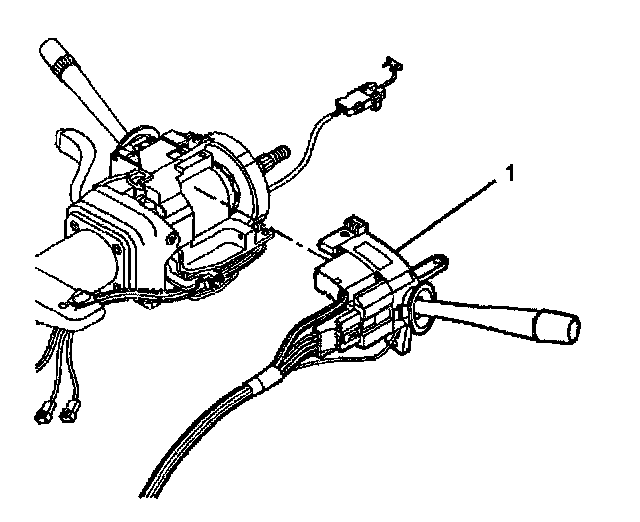

1. Install the turn signal and multifunction switch assembly (1) to the steering column tilt head assembly.

IMPORTANT: The electrical contact must rest on the turn signal cancel cam assembly.

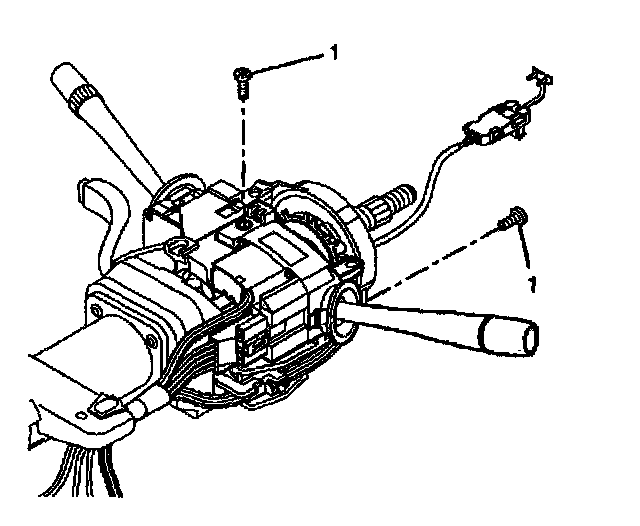

2. Install the 2 pan head tapping screws (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the 2 screws to 7 Nm (62 inch lbs.).

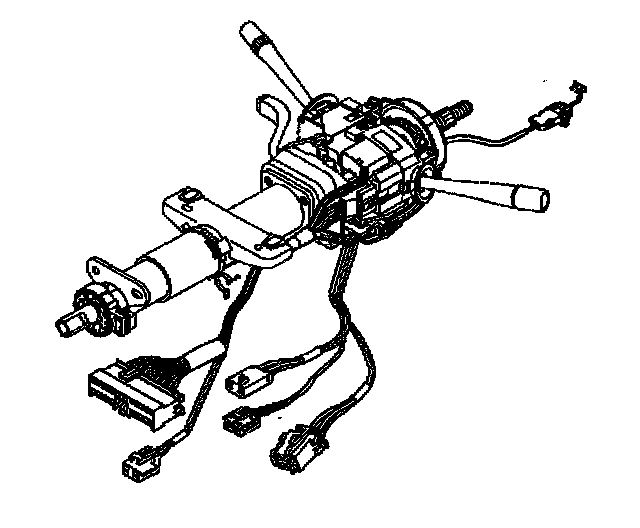

3. Route the wire harness assembly along the steering column jacket assembly.
4. Connect the turn signal and multifunction switch assembly connector.





5. Pop the wire harness assembly (1) into the wire harness strap (2).





6. Install the wire harness straps (2) to the steering column tilt head assembly (1).
7. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Non-Telescoping Column).
