SIR Steering Wheel Module Coil - Assemble

ASSEMBLY PROCEDURE

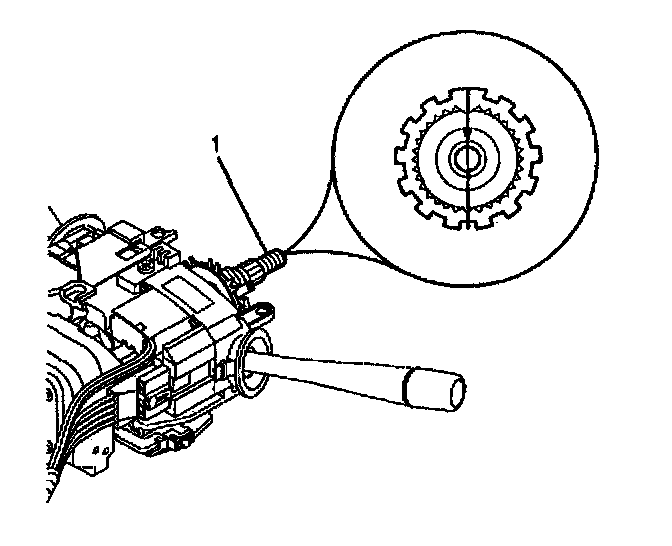

1. Align the block tooth on the steering shaft assembly (1) to the 12 O' clock position.
2. Place the ignition switch in the "lock" position.





3. If installing the existing SIR coil assembly, it must be centered first. Refer to Inflatable Restraint Coil Centering - Off Vehicle (SIFT).

IMPORTANT: A new SIR coil assembly will be pre-centered. Do not remove the centering tab from the new SIR coil assembly until the installation is complete.

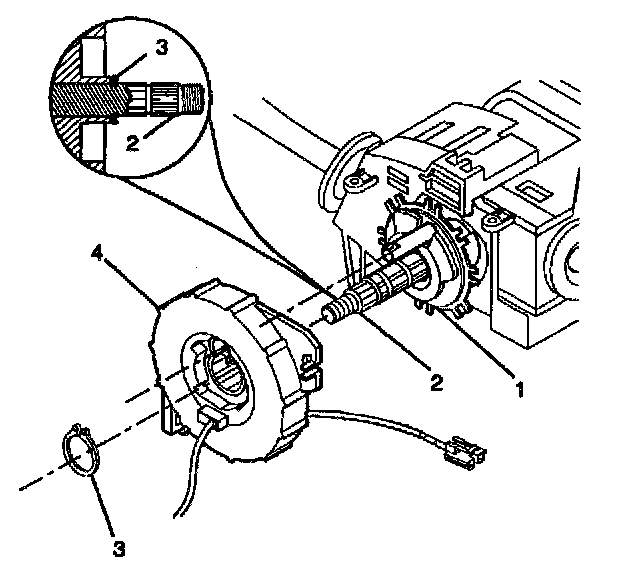

4. Align the SIR coil assembly (4) with the horn tower on the turn signal cancel cam assembly (1).
5. Slide the SIR coil assembly (4) onto the steering shaft assembly (2).
6. Firmly seat the retaining ring (3) into the groove on the steering shaft assembly (2).
7. Remove and discard the centering tab from the new SIR coil assembly (4).





8. Reconnect the SIR coil assembly connector.

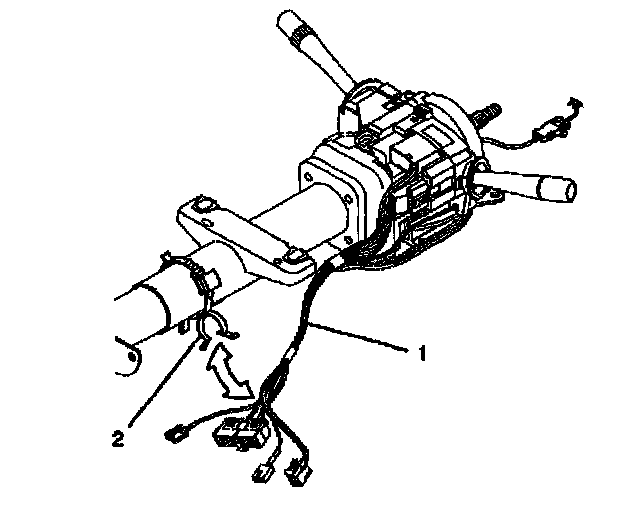

9. Attach new wire harness straps (2) to the wire harness assembly (1) and the steering column.
10. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Non-Telescoping Column).
