Pivot & Pulse Switch - Assemble

ASSEMBLY PROCEDURE

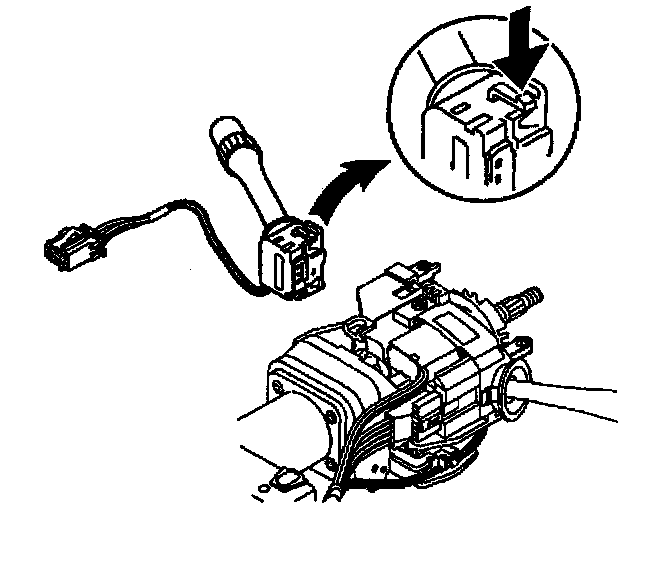

1. Slide the pivot and pulse switch assembly into the electric column lock until the clips engage.





2. Route the wire harness assembly along the steering column jacket assembly.
3. Connect the pivot and pulse switch assembly connector, if necessary.





4. Pop the wire harness assembly (1) into the wire harness strap (2).





5. Install the wire harness straps (2) to the steering column tilt head assembly (1).
6. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble -Off Vehicle (Non-Telescoping Column).
