Fuel Filler Hose Replacement

REMOVAL PROCEDURE
1. Remove the left fuel tank.

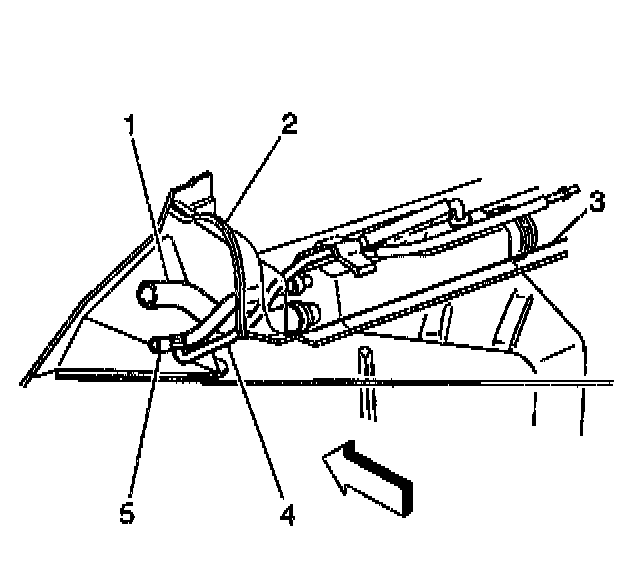

2. Remove the fuel fill hose (1) and the vent hose (5) from the fuel tank.
3. Cap the open ends of the fuel tank.

INSTALLATION PROCEDURE
1. Uncap the openings on the fuel tank.

NOTE: Refer to the Fastener Notice in Cautions and Notices.

2. Install the fuel fill hose (1) and the vent hose (5) to the fuel tank.

Tighten
Tighten the fuel fill hose clamp and the vent hose clamp to 4 N.m (35 lb in).

3. Install the left fuel tank.
