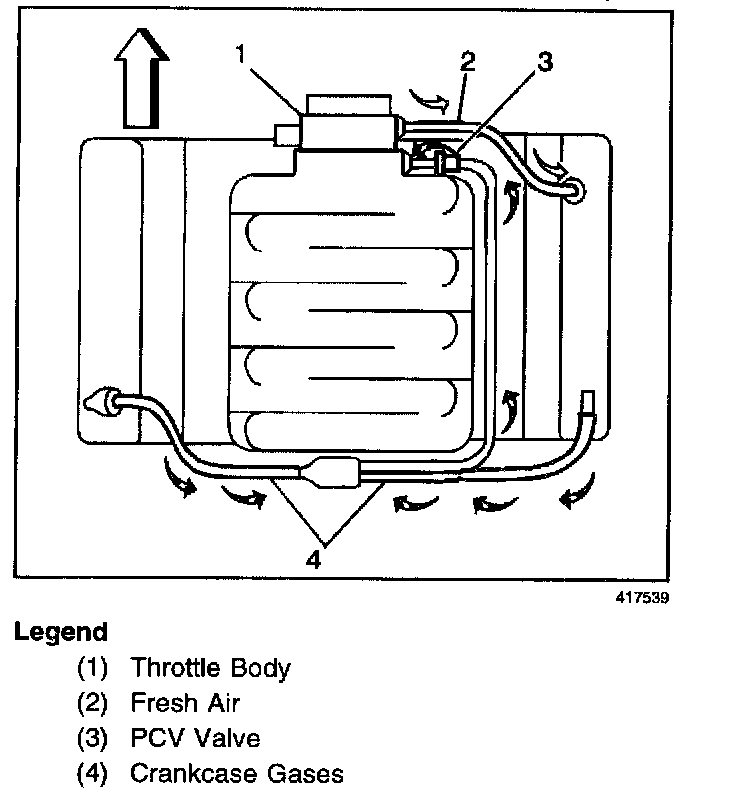

Crankcase Ventilation System Routing

Crankcase Ventilation System Routing:

The dual draw system was develop to meet harsh handling maneuver requirements. During sustained maximum lateral accelerations, the outboard rocker cover may fill with oil. The dual draw system passively switches, allowing the PCV valve to draw on the rocker cover with the least resistance. This results in the system drawing on the air filled, or inboard rocker cover and eliminates oil pullover due to drawing on the oil-filled outboard rocker cover.
