Circuit Breaker 54

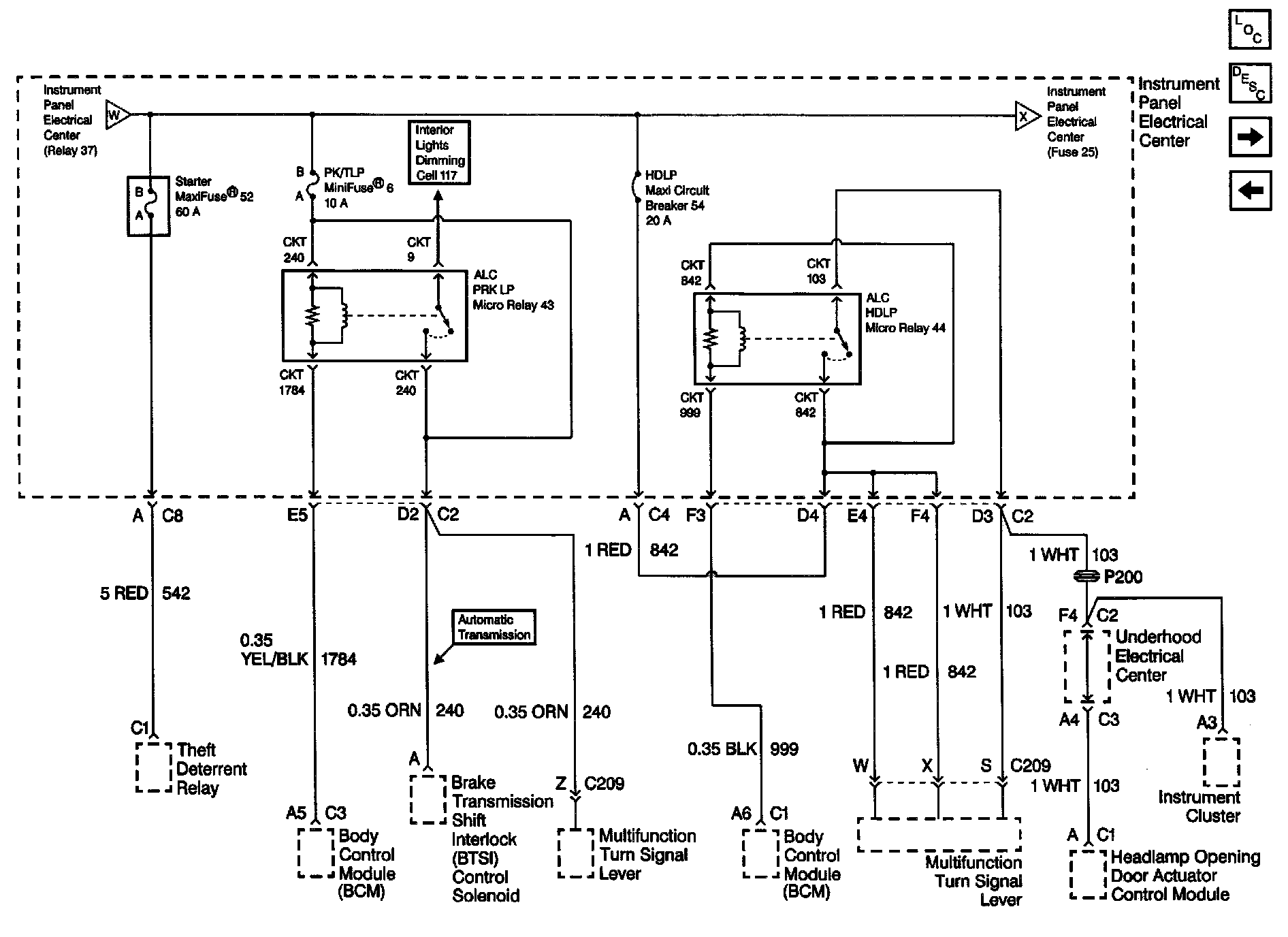

I/P Fuses 52, 6, Relays 43, 44, Circuit Breaker 54:

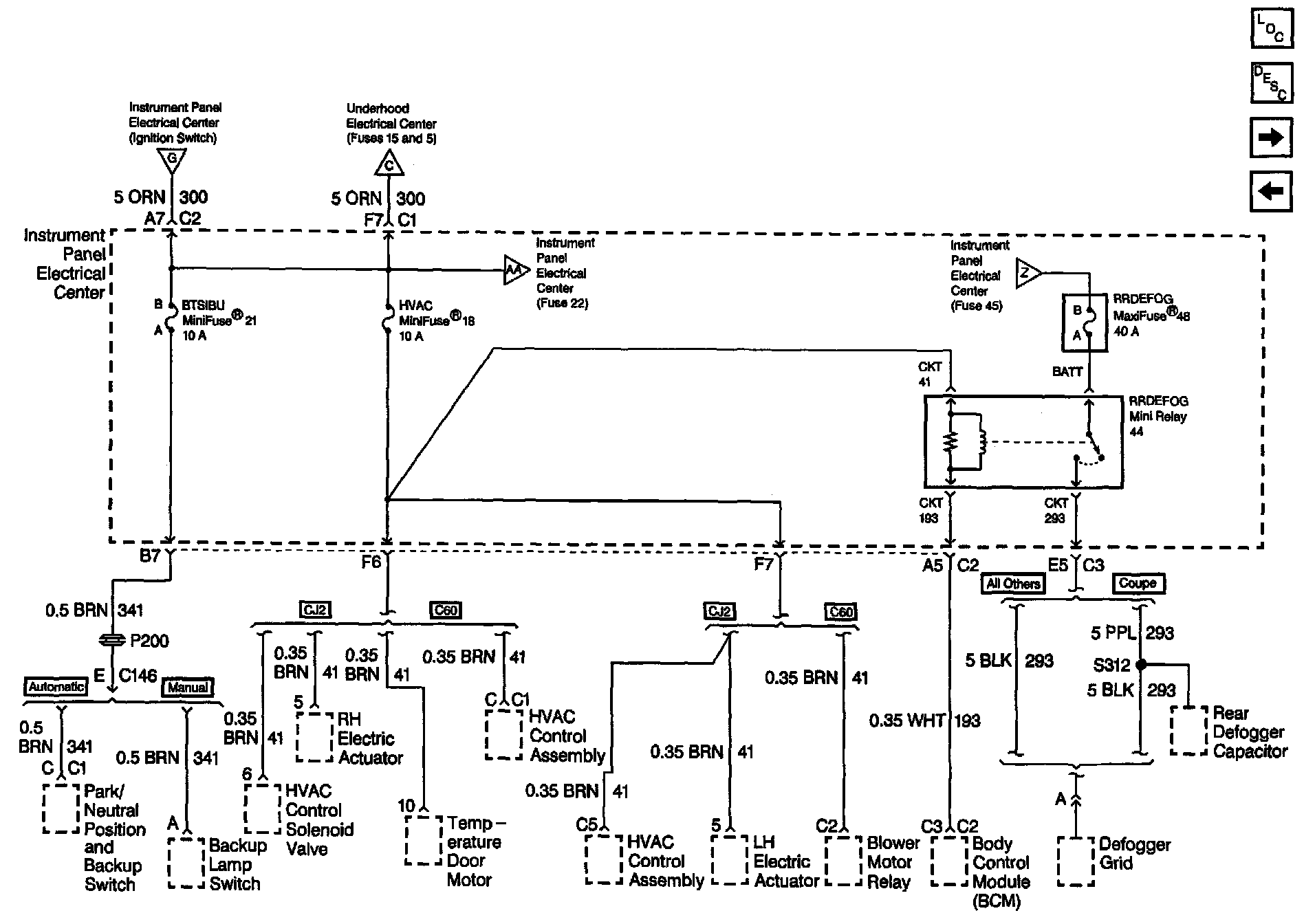

I/P Fuses 21, 18, 48, Relay 44:
