Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
Splice Packs By Number
>>
SP100
SP100

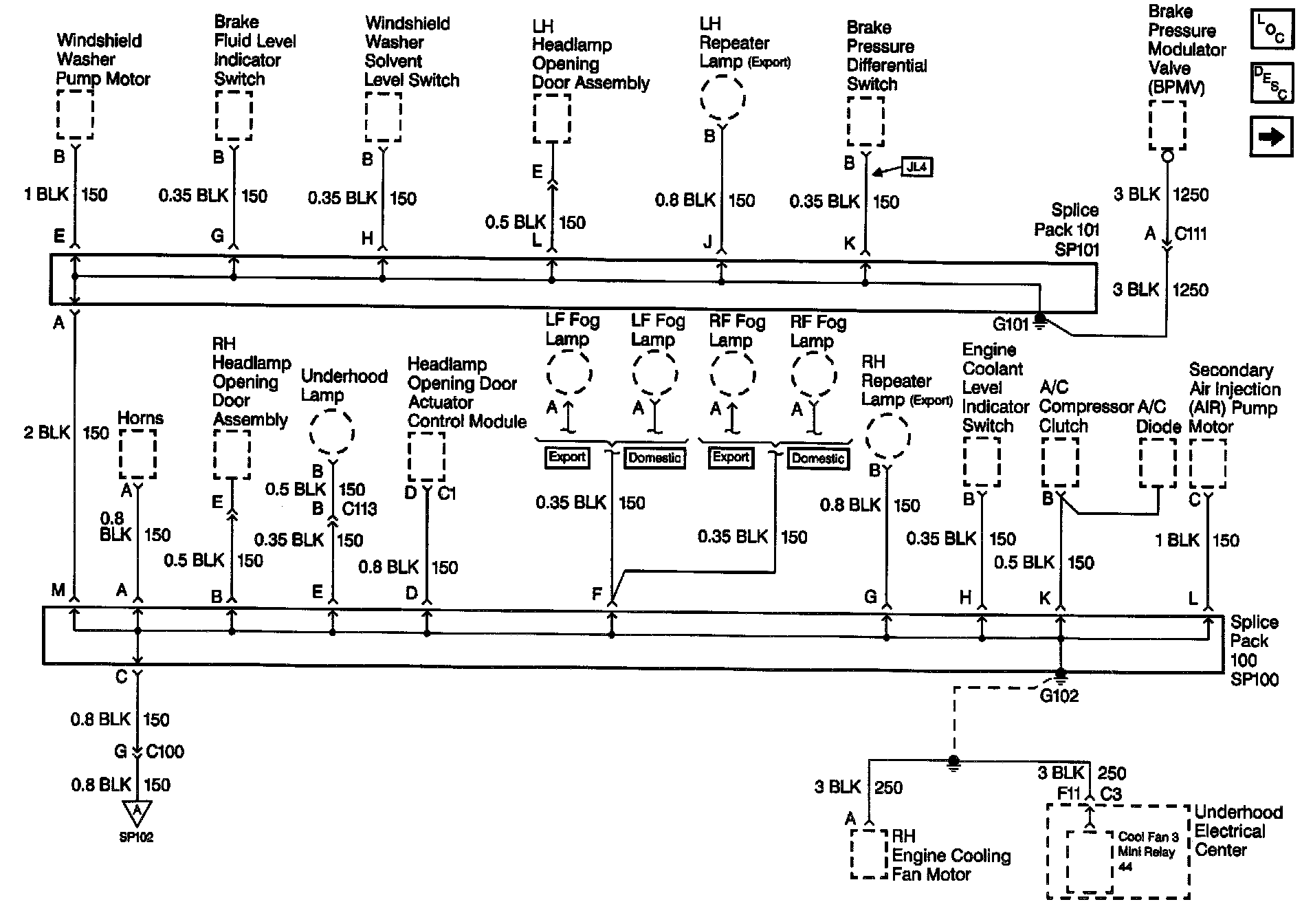

SP101, SP100, G101, G102:
