Front

REMOVAL PROCEDURE

- Tools Required
- J 6627-A Wheel Stud Remover





1. Raise and support the vehicle. Refer to Vehicle Lift Points.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the front wheel hub/speed sensor assembly. Refer to Wheel Hub/Speed Sensor Replacement.

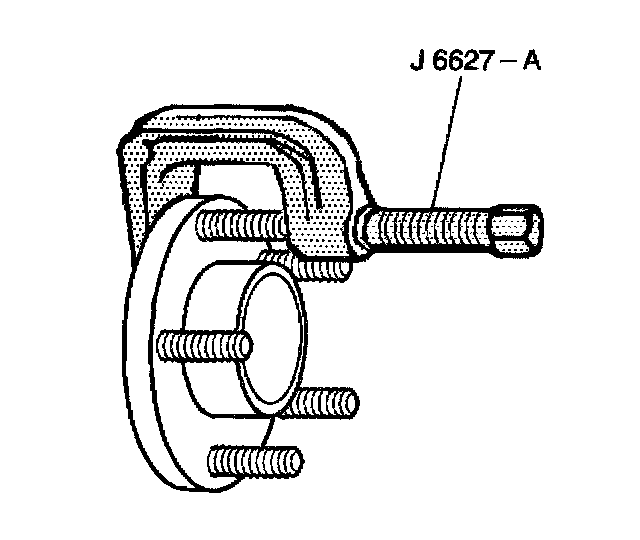

4. Install tool J 6627-A onto the wheel hub and stud.
5. Turn the forcing screw in until the stud is pushed out of the wheel hub.

INSTALLATION PROCEDURE





1. Place a new stud in the wheel hub.
2. Install some washers onto the wheel stud.
3. With the flat side of a wheel nut (2) against the washers, tighten the wheel nut until the wheel stud head seats against the wheel hub flange.

IMPORTANT: Make sure that the wheel stud is fully seated against the wheel hub flange.

4. Remove the wheel nut and washers.
5. Install the wheel hub/speed sensor assembly into the steering knuckle. Refer to Wheel Hub/Speed Sensor Replacement.
6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
7. Lower the vehicle.
