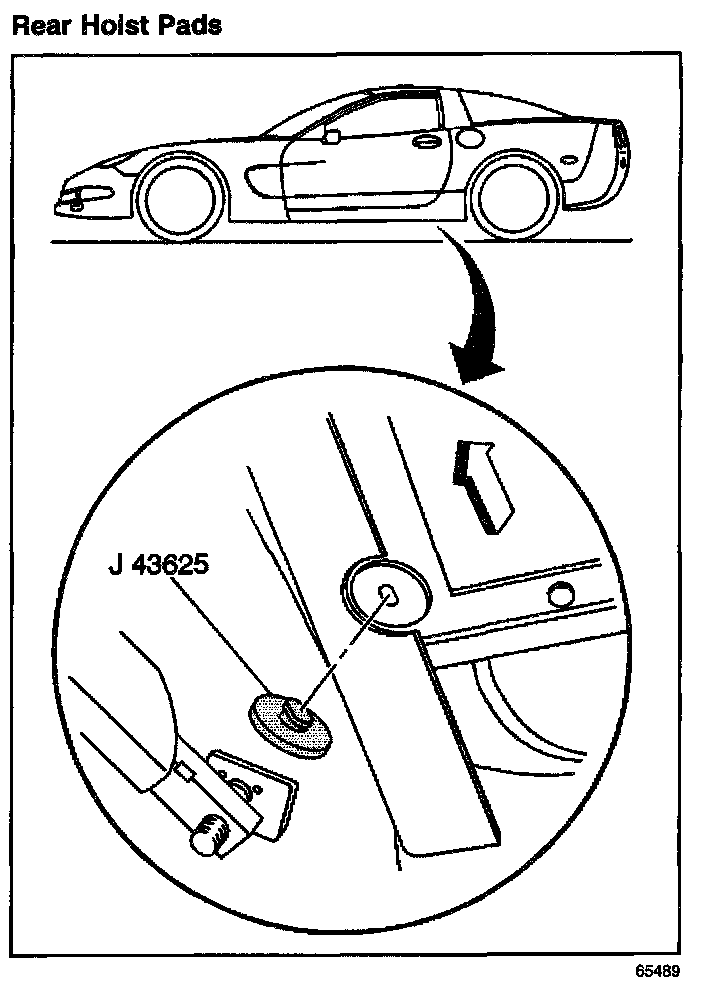

Rear Hoist Pads

IMPORTANT:
^ The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements.
^ The rear hoist pads must not contact the floor pan.

Rear Hoist Pads:

Install the J 43625 into the rear frame rail shipping slots, lock into place and position the rear hoist pads as follows:
^ Under the J 43625.
^ The long sides of the hoist pads perpendicular to the J 43625.
