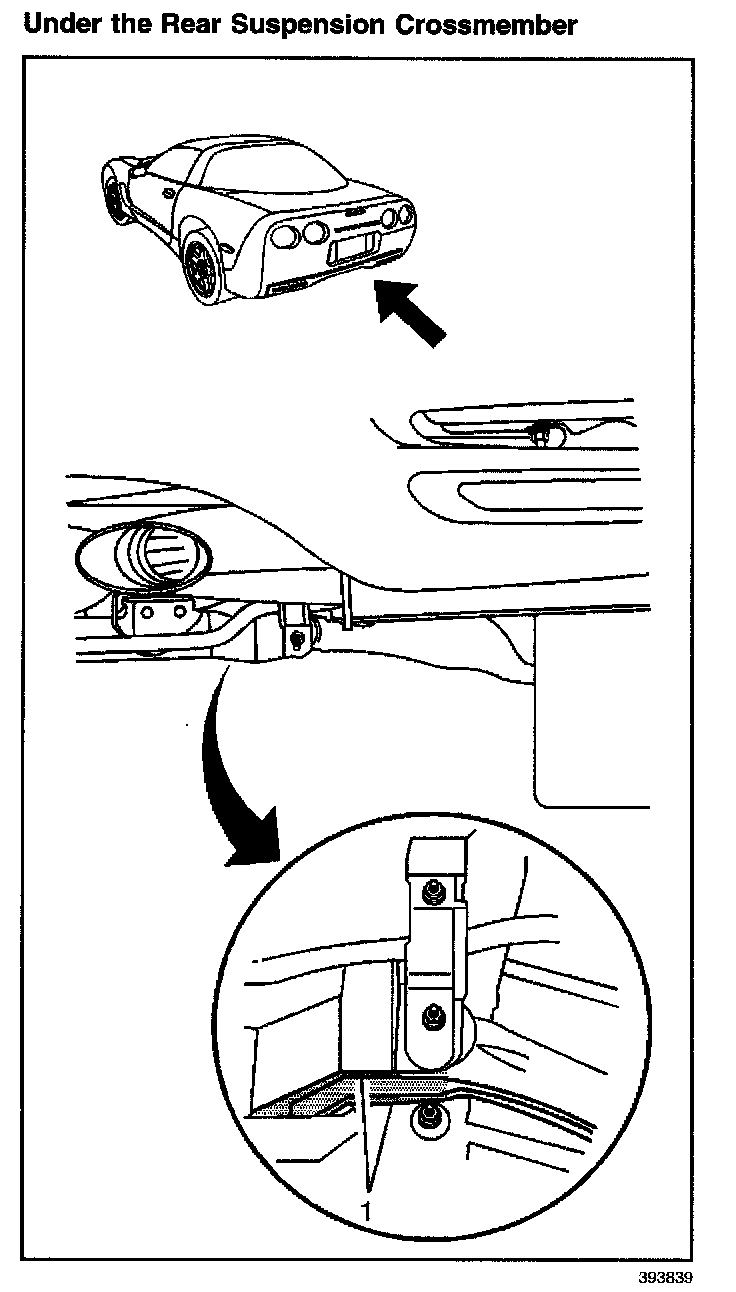

Under the Rear Suspension Crossmember

IMPORTANT:
^ The service jack lift pad must not come in contact with the rear suspension monoleaf spring.
^ Carefully observe the following:
- Be sure to place a block or pad between the jack lift pad and the vehicle.
- Make sure the jack lift pad spans at least 2 suspension crossmember ribs (1).
- Lift only in the areas shown.

Under The Rear Suspension Crossmember:

Position the service jack lift pad as follows:

Spanning the 2 suspension crossmember ribs (1).
