Drive Belt Replacement (Accessory)

Removal Procedure

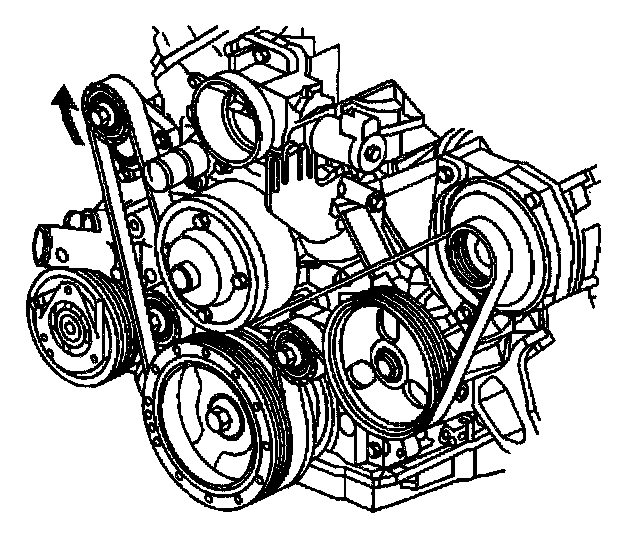

1. Position a hex-head socket on the drive belt tensioner pulley.
2. Rotate the accessory drive belt tensioner clockwise to reduce tension on the accessory drive belt during removal or installation.





3. Remove the accessory drive belt (5).

Important: In order for the belt to track properly, both the belt grooves and the crankshaft balancer grooves should be free of all dirt or debris.

4. Clean the belt grooves of all dirt or debris with a wire brush.
5. Clean the crankshaft balancer grooves of all dirt or debris with solvent.
6. Dry the crankshaft balancer with compressed air.

Installation Procedure





1. Route the accessory drive belt (5).
1.1. Rotate the accessory drive belt tensioner clockwise to reduce tension on the accessory drive belt.
1.2. Position the drive belt on the water pump pulley last.
2. Inspect to insure that the accessory drive belt is aligned properly in the power steering pump pulley, idler, generator, crankshaft pulley, water pump pulley and the tensioner grooves.
