Marker Lamp Bulb: Service and Repair

REMOVAL PROCEDURE
1. Remove the nearest outer taillamp. Refer to Tail Lamp Replacement. Service and Repair

Access the sidemarker lamp through the taillamp opening.

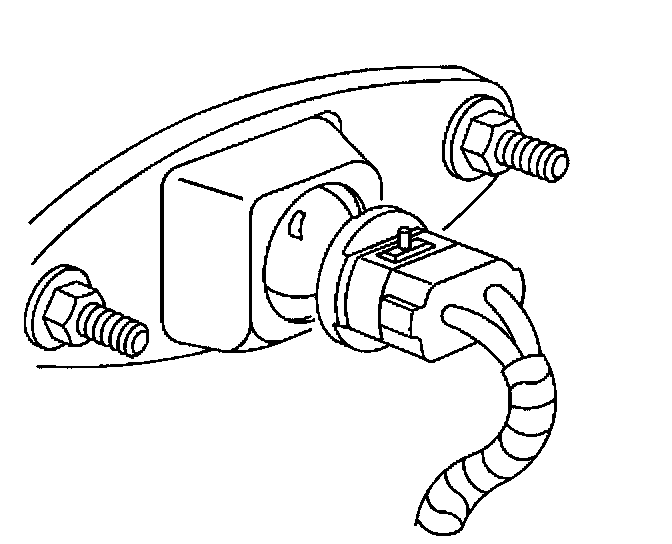

2. Remove the sidemarker lamp socket from the sidemarker lamp assembly by rotating the socket counter clockwise.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE
1. Install the bulb to the sidemarker lamp socket.
2. Install the socket to the sidemarker lamp assembly. Rotate the socket clockwise to engage the locking tabs.
3. Install the taillamp.
